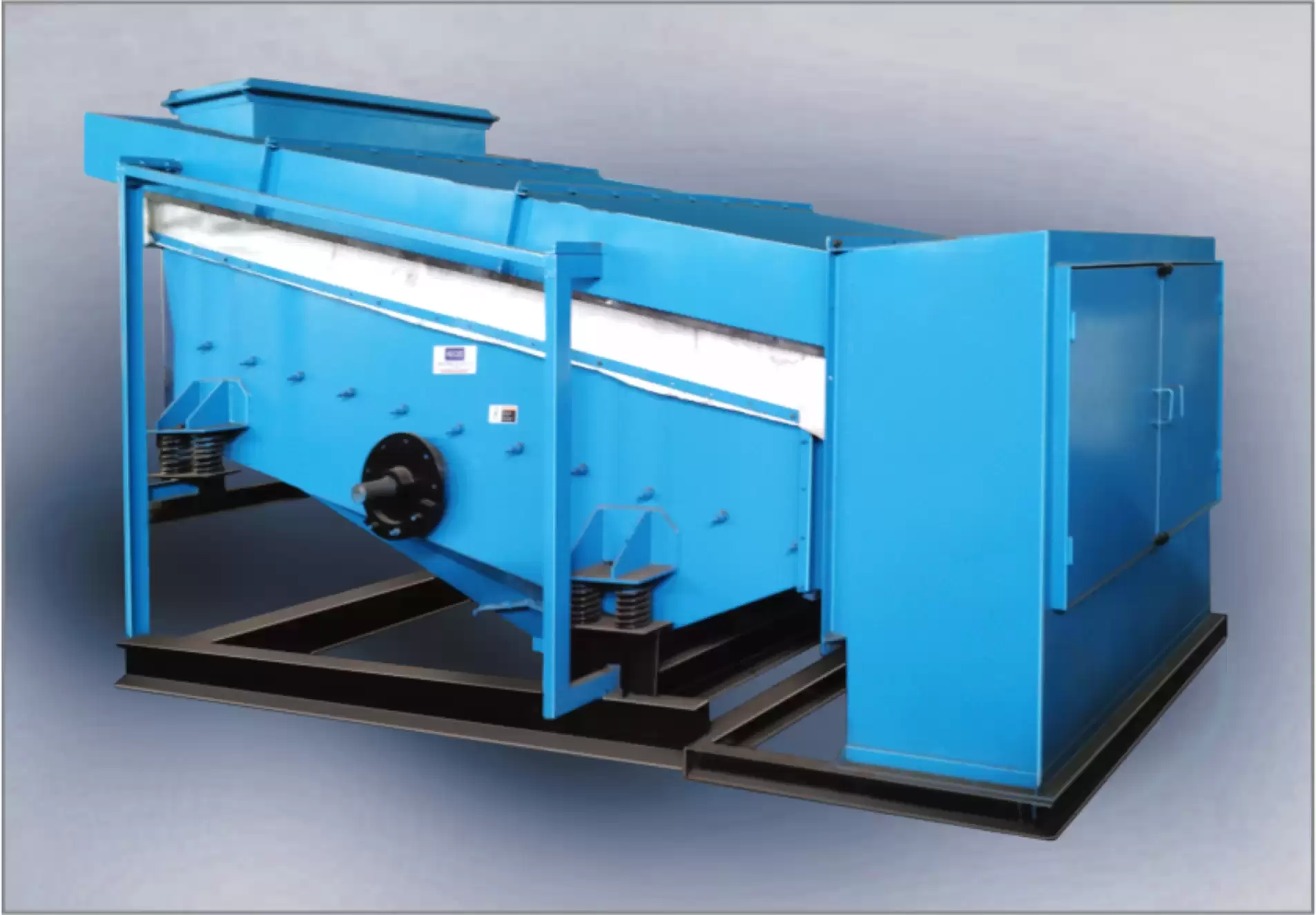

Vibratory Screen
AEGIS have had years of field and development experience and are experts at solving screening problems. Vibratory screens are manufactured with single or multiple deck and are used primarily for grading of material by size.
The working principle of Vibratory Screen is simple. The vibration effect leads to the screening of material through the screen (mesh) of appropriate size. The vibration effect is caused by the rotation of shaft with its eccentric weights. The throw of the vibrating screen can be easily varied by adjusting the eccentric weights.
APPLICATION
- Used for grading material by size
- Can also be used for washing material, dewatering, descaling or any combination of these operations
- Suitable to screen wide range of products such as Sand and Gravel, building materials, Minerals, Ores, Pellets, Sinter, Coal, Coke, Pet Coke, Lignite, Limestone, Dolomite, Chemical Products, Fertilizers, etc.
Advantages
- Low equipment cost and also low running costs
- Simple design with stable operation
- Easy to install, operate and maintain
- Strong vibration achievable leading to high screening efficiency
- Very low vibrating noise
- Dusty, corrosive or toxic materials can be completely confined by the enclosure, offering dust free and safe working environment
application and requirement
AEGIS manufactures Vibratory Screens in 5 models. Right model can be chosen depending on the application and requirement.
Model
Screen Size
Screen Area
Max. Feed Size
Min. Capacity
Max. Capacity
mm
m2
mm
tph
tph
AEVS916
900 X 1600
1.44
150
3
5
AEVS1120
1100 X 2000
2.2
150
5
7.5
AEVS1224
1200 X 2400
2.88
150
7.5
10
AEVS1428
1400 X 2800
150 to 200
150
10
15
AEVS1530
1500 X 3000
150 to 200
150
15
20
Note 1: The capacity is calculated considering Coal as material with Density – 800 kg/m3 and Output Product Size – @ (-) 8 mm
Note 2: While using as a primary screen, the same size is available for double deck

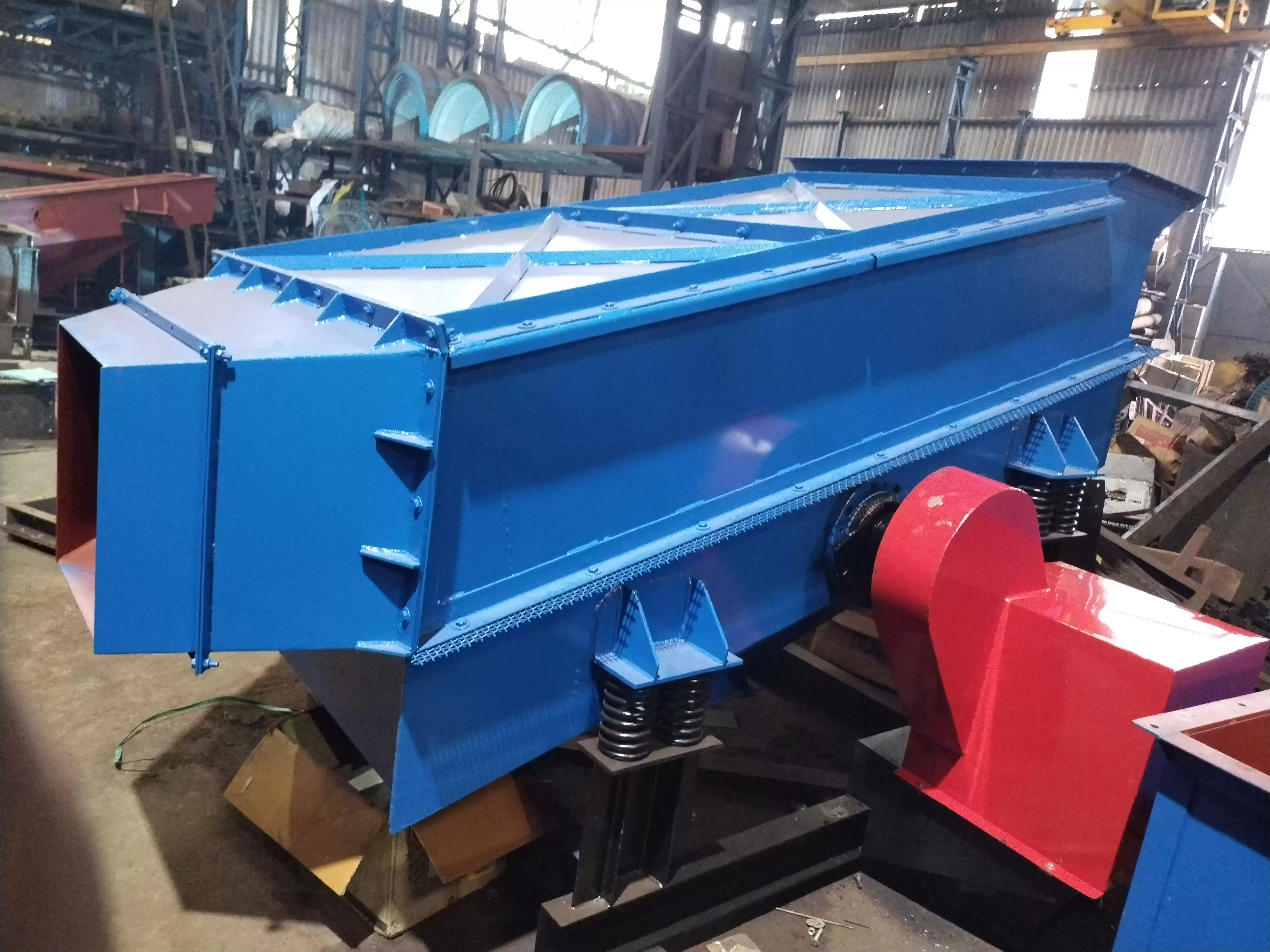

Gallery
