Fuel Handling System
Fuel Handling System is used for processing and handling of various types of solid fuels which are used to run FBC boilers, moving floor/pulse grating boilers, hot air generators and other systems where fuel of specific size is required.
“Offering Fuel Handling Systems on turnkey basis is one of the core areas AEGIS is engaged in”
- AEGIS is one of the pioneers in India in the manufacturing of Coal/Lignite Processing & Handling System for small & medium capacity boilers, suitable as per the specification of the FBC Boilers/Heaters. We at AEGIS are capable of conceptualising, designing, engineering, assembling and installing custom fuel handling systems, acting as a full-service solutions provider.
- AEGIS also pioneered the manufacturing & supply of Multiple Fuel Handling systems for steam generation units capable of working on multiple fuels.
AEGIS has supplied Fuel Handling Systems for following types of fuels
- Fossil Fuels - Coal, Lignite, Pet coke
- Agro Fuels - Sawdust, Bagasse, Agro fuel briquette, Rice husk, DOC, Wood chips, Cotton stock, Palm kernel shell/fiber, Empty fruit bunch.
- Industrial Fuels - Spent coffee, ETP Sludge

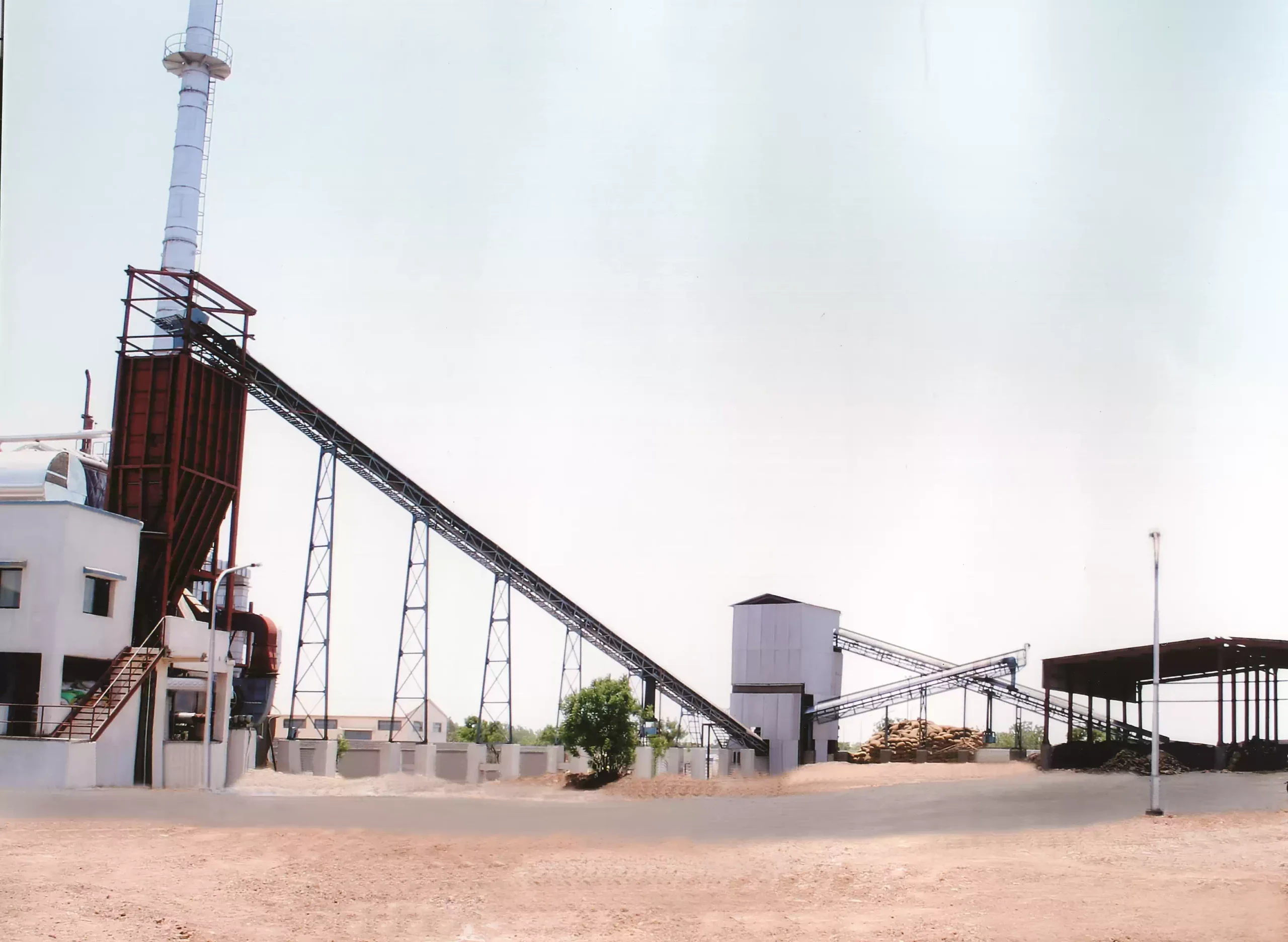

Fuel Processing & Handling System

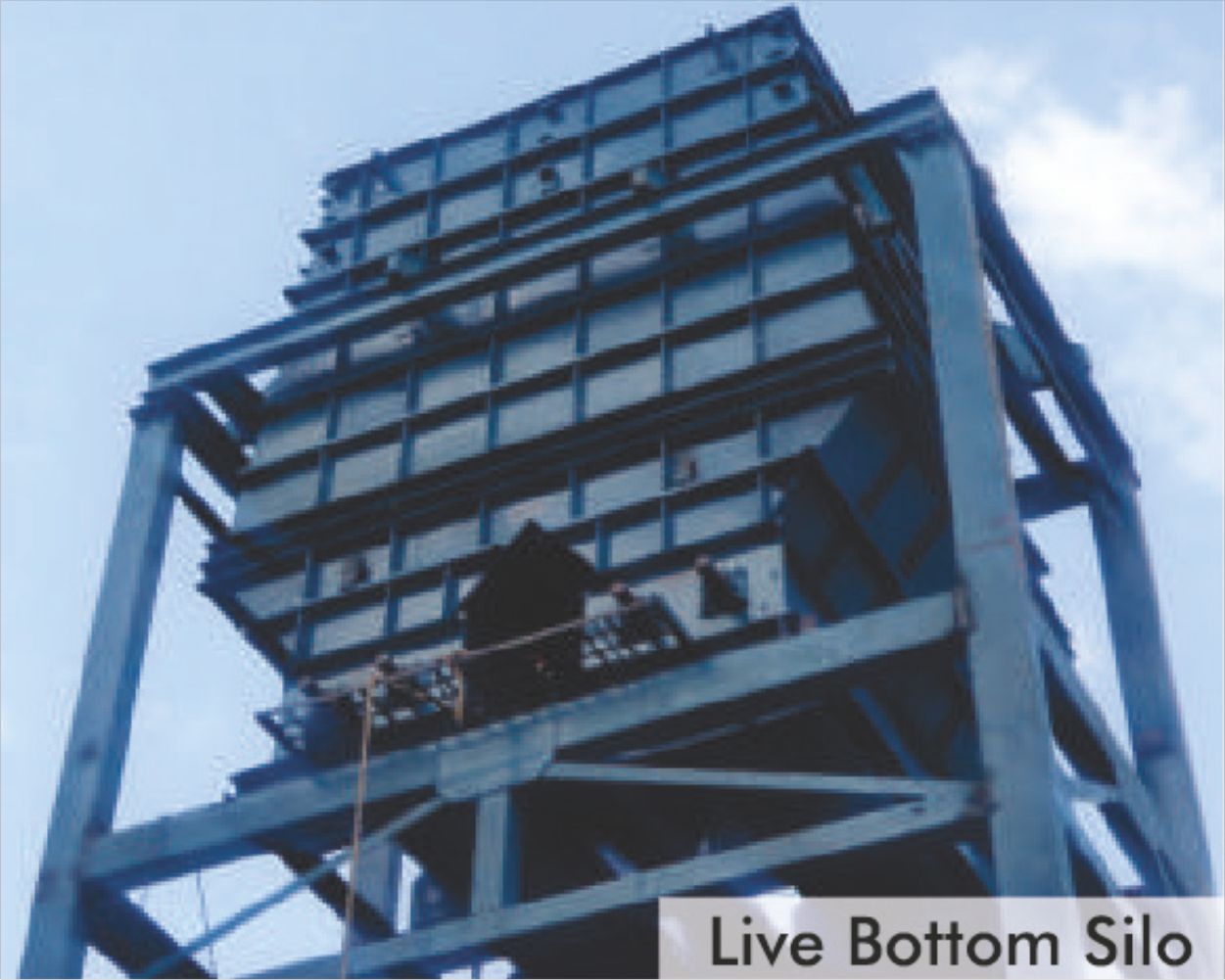

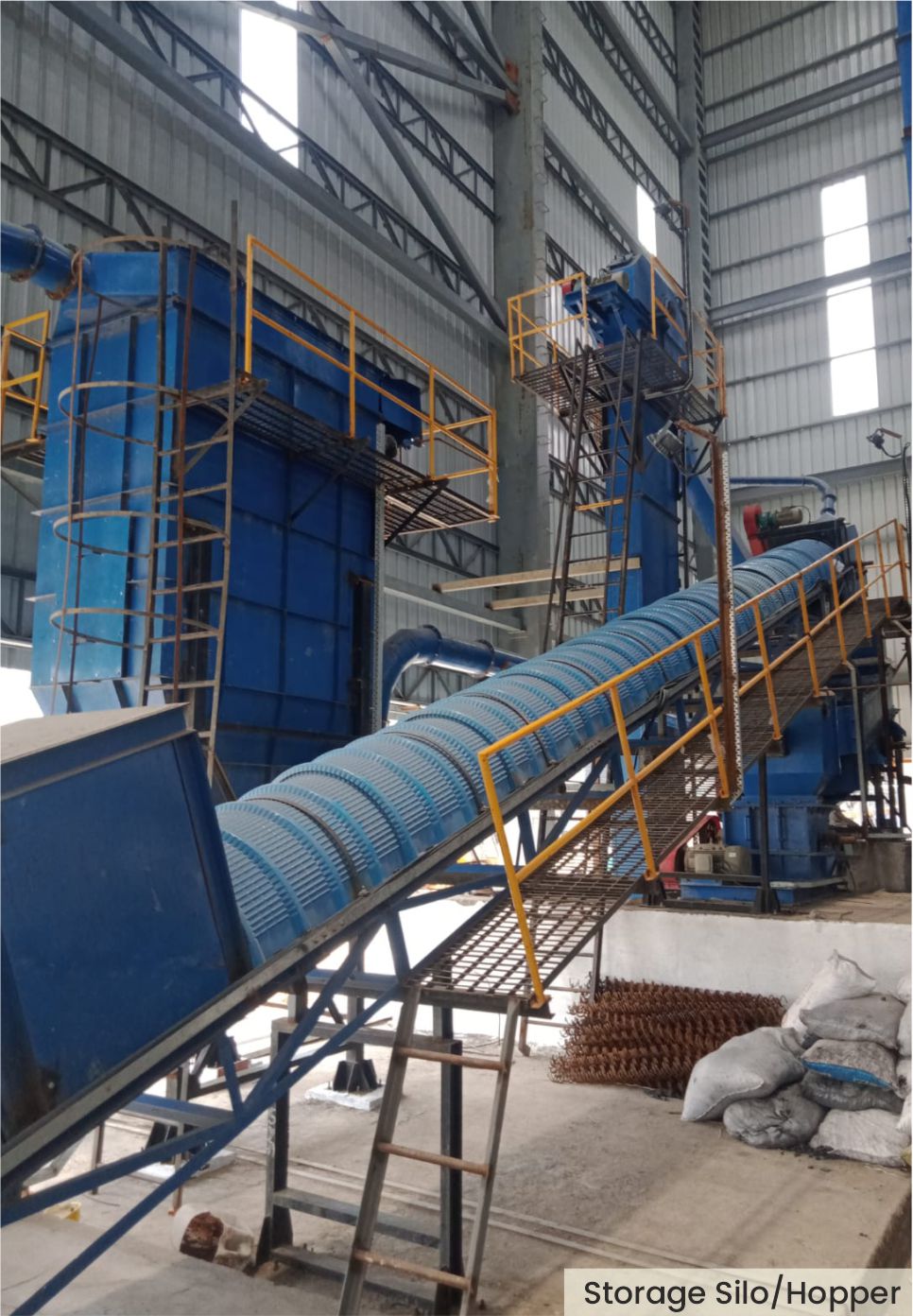

Fuel Handling System includes raw fuel receiving, crushing, screening, conveying, storage & reclaiming of fuel. Fuel reclaiming includes specialized designed Live Bottom Silo for non-free flowing fuel from storage silo/hopper to the boiler. The system includes all auxiliary equipment needed for specific, specialized & exacting requirement of the entire system.
A typical Fuel Handling System comprises the following equipment/components :
- Feed hopper with grizzly and out flow control gate

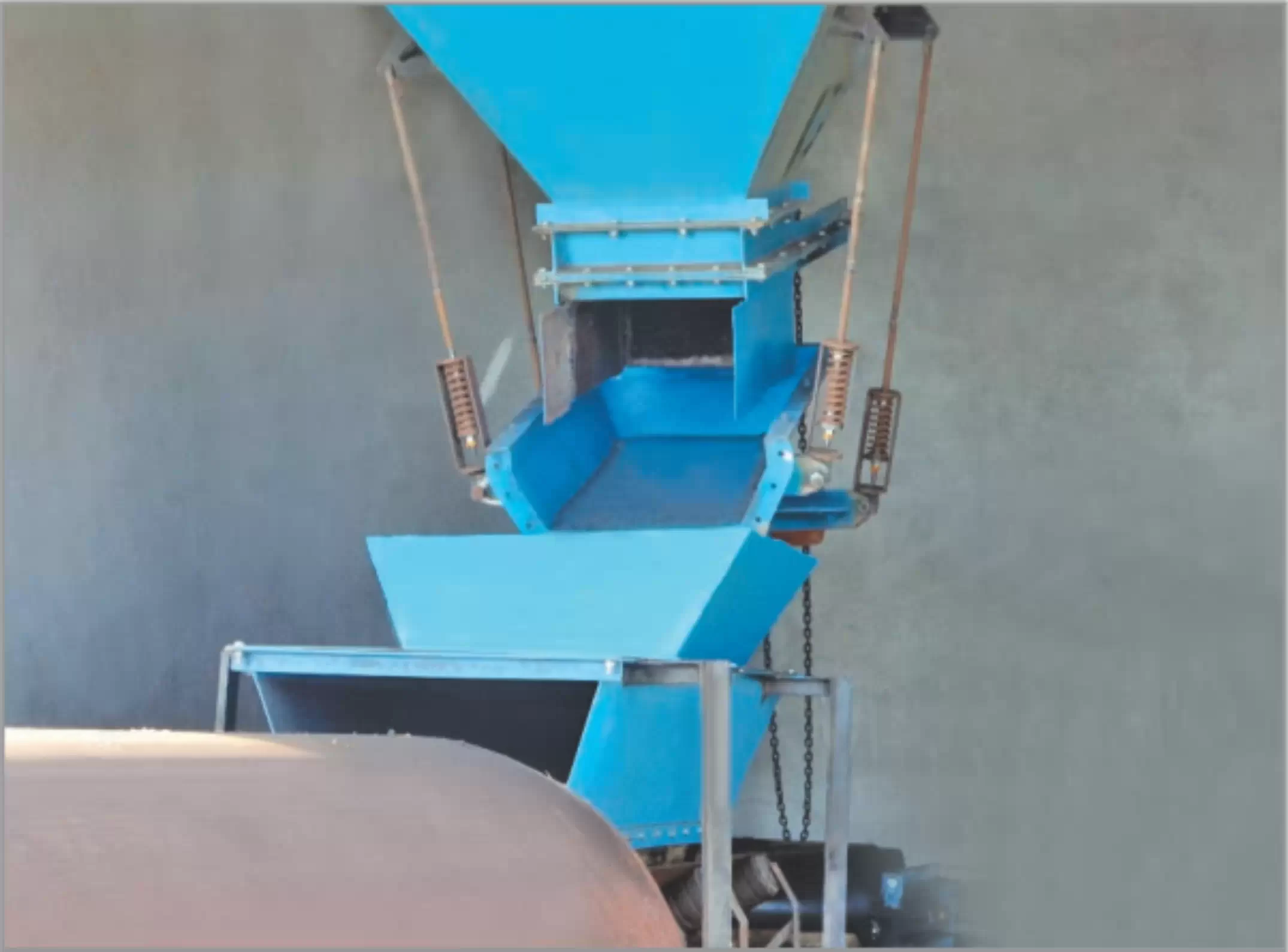

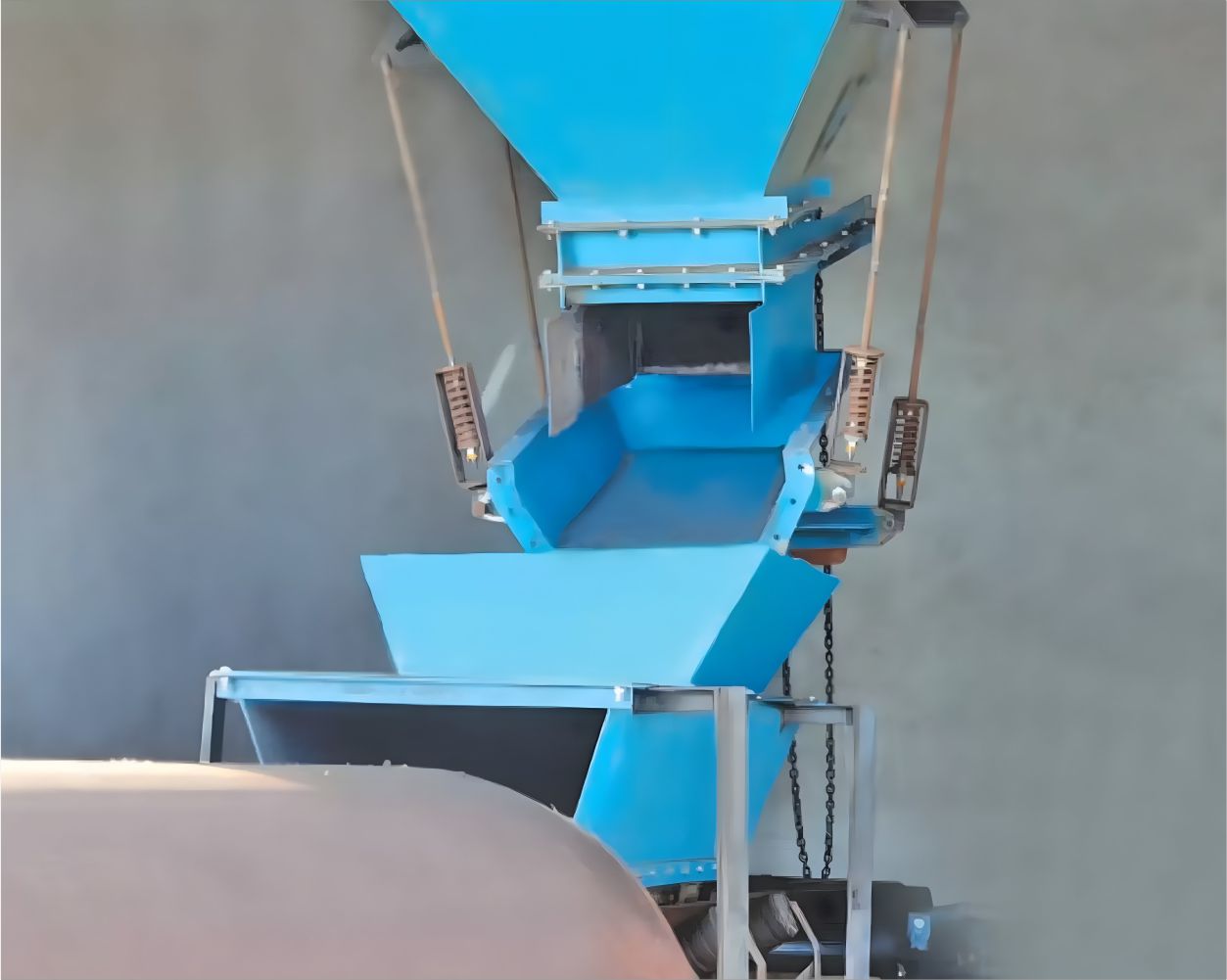

- Vibratory feeder or belt feeder.
- Feed belt conveyor with magnetic separator

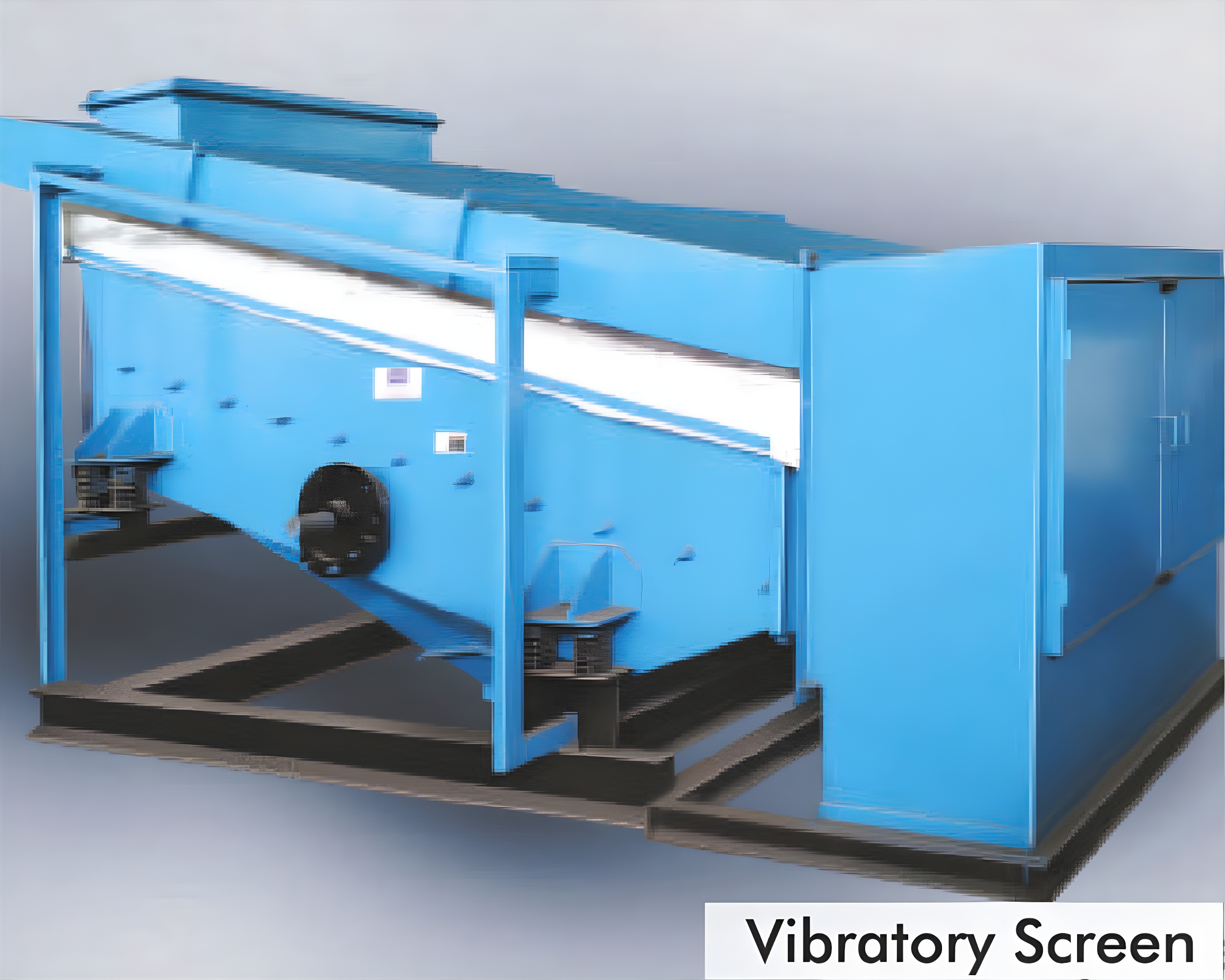

- Vibratory screen (Primary / Secondary)

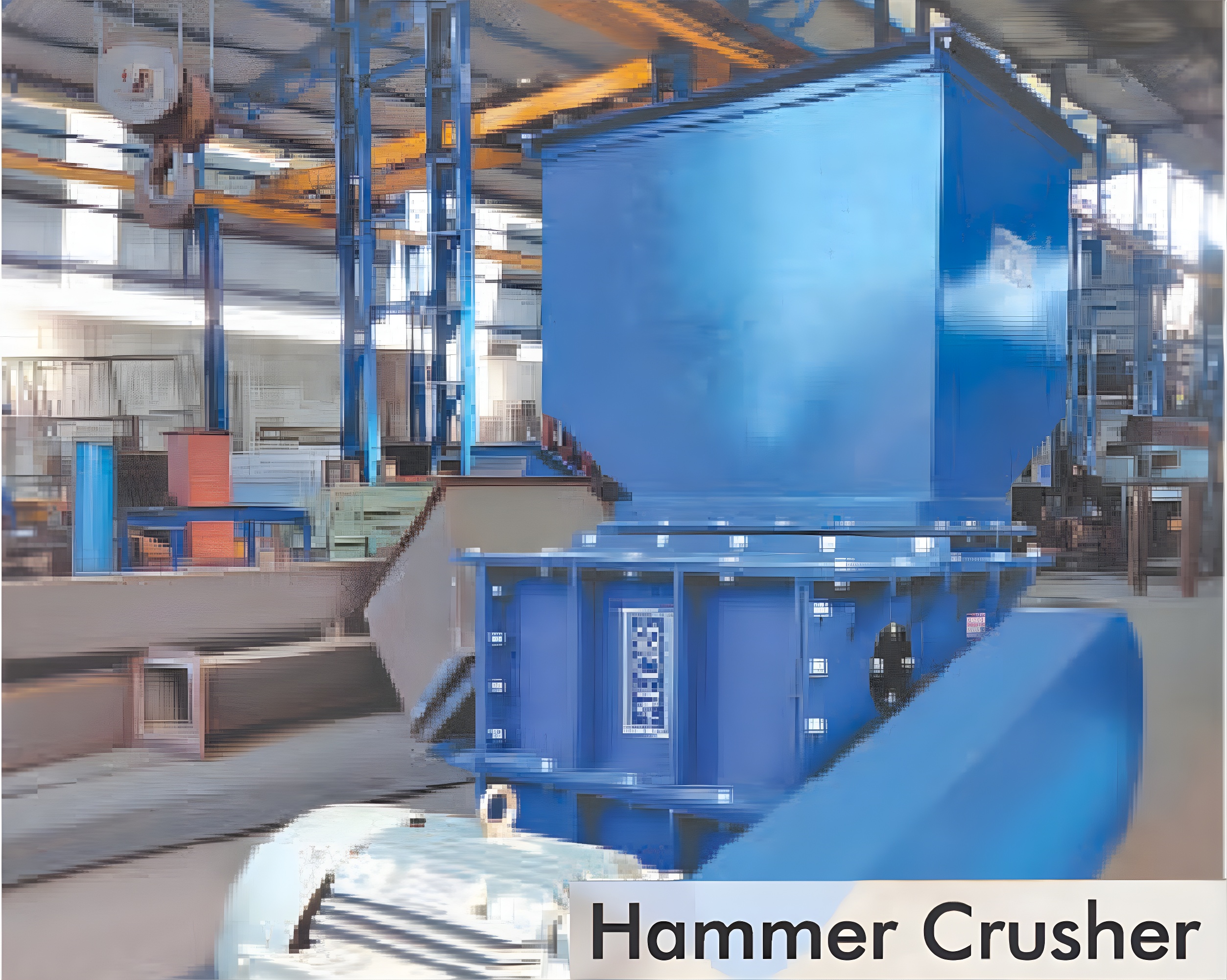

- Crusher (Impactor / Roller)

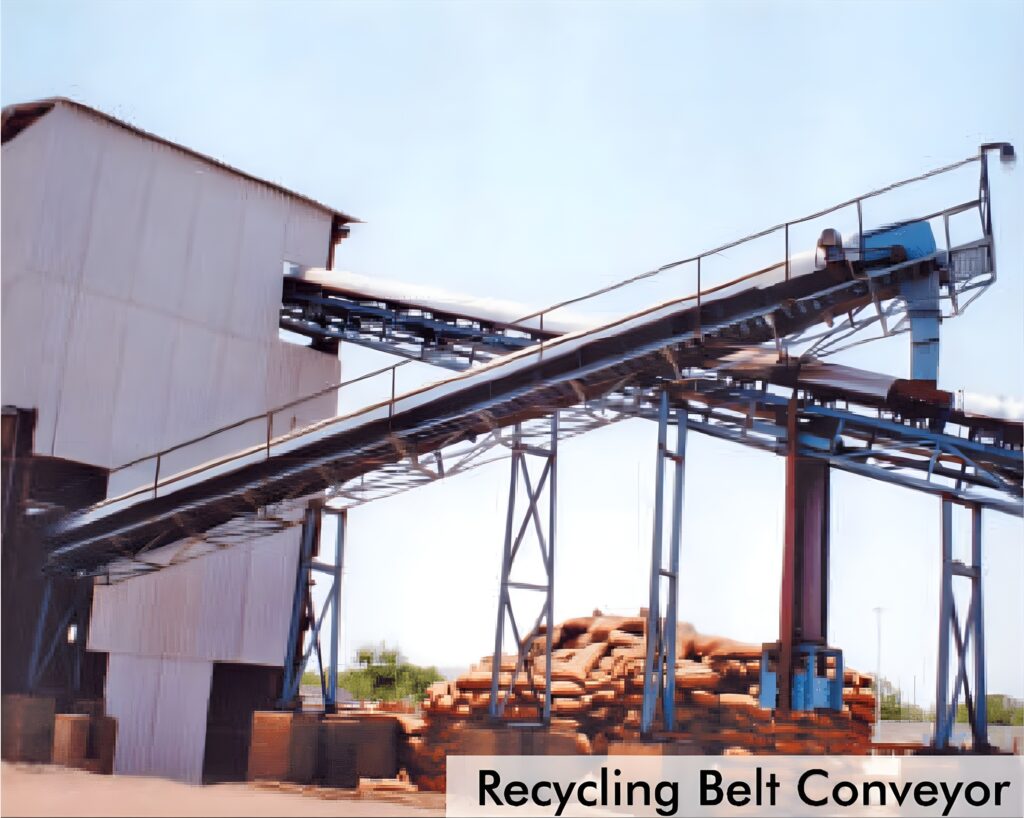

- Recycling belt conveyor or bucket elevator
Bunker feeding equipment with any one of the following options:

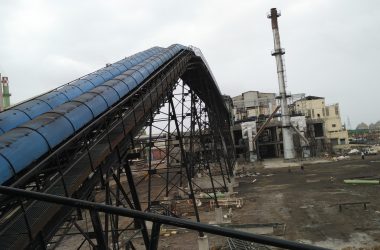

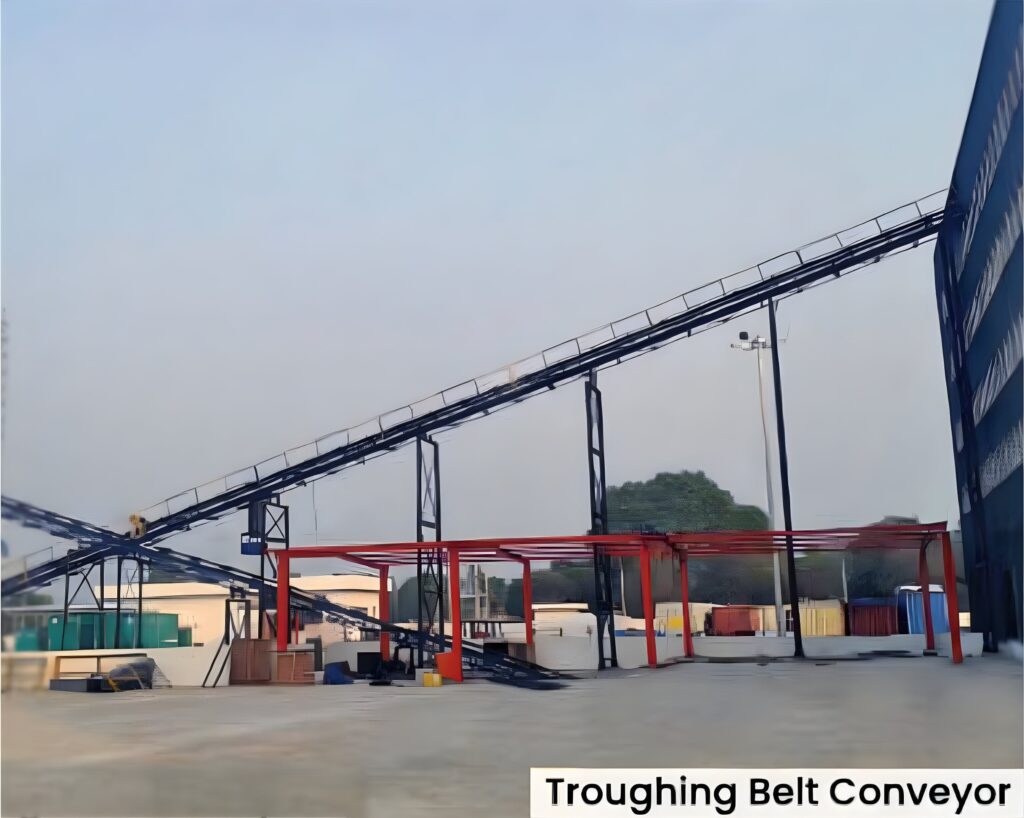

- Troughing belt conveyor

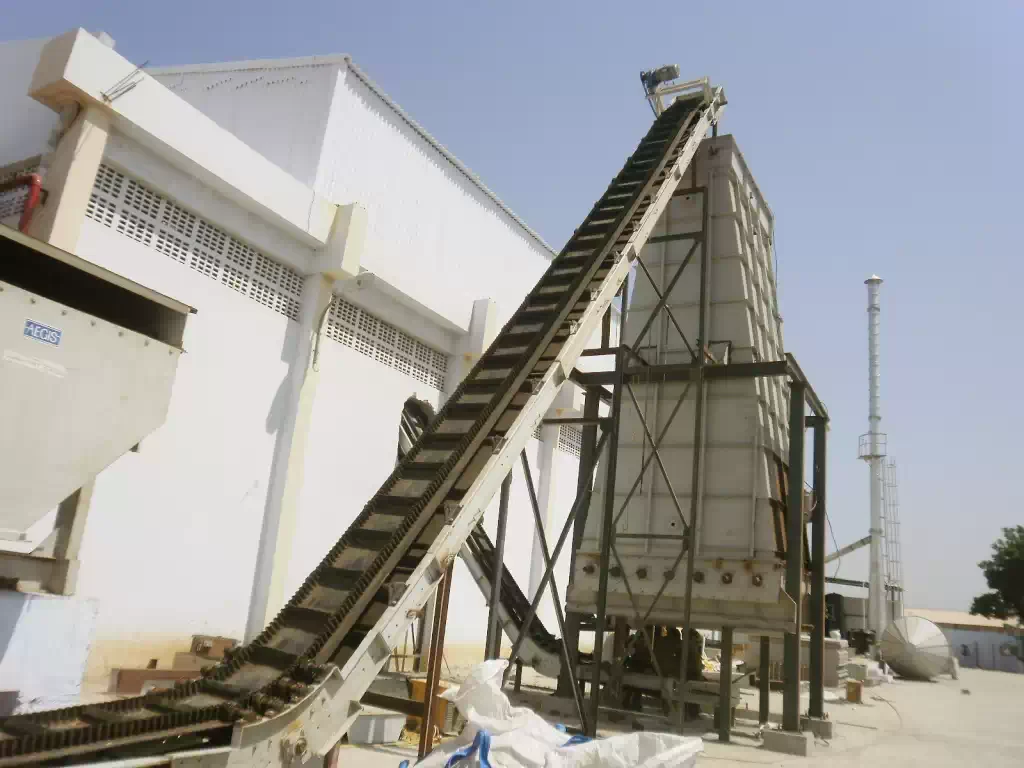

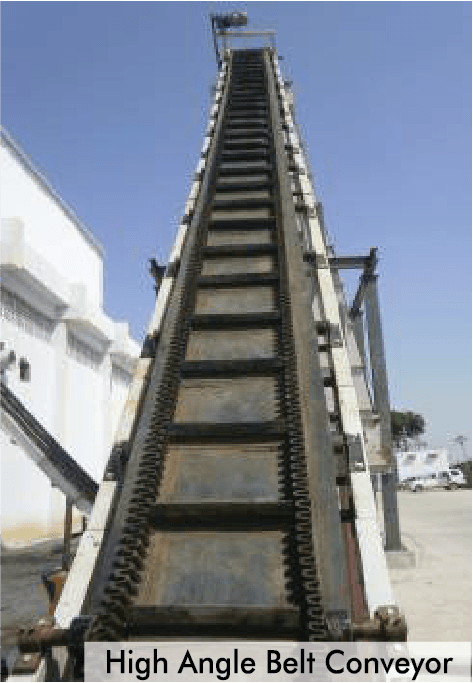

- High angle belt conveyor

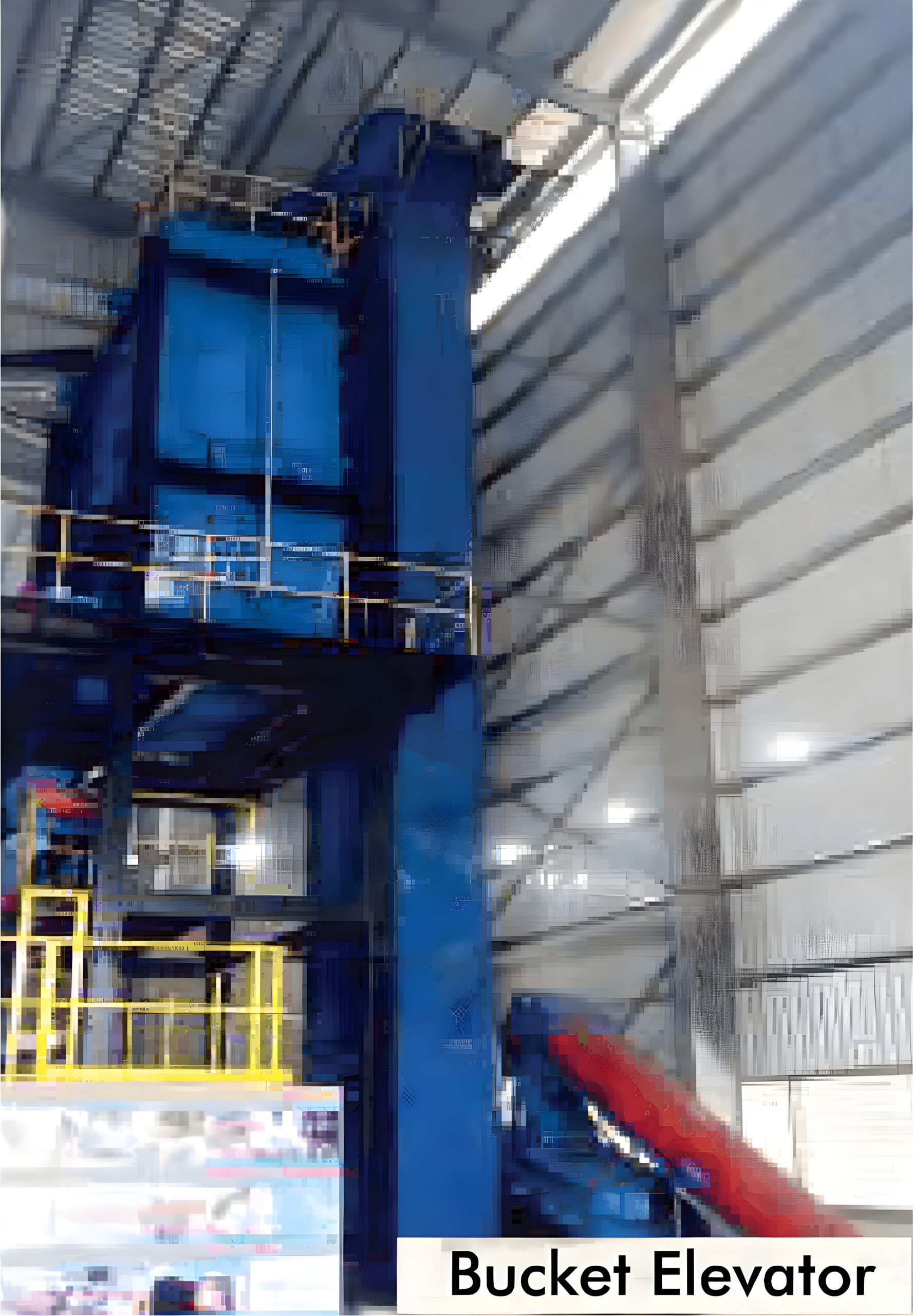

- Bucket elevator

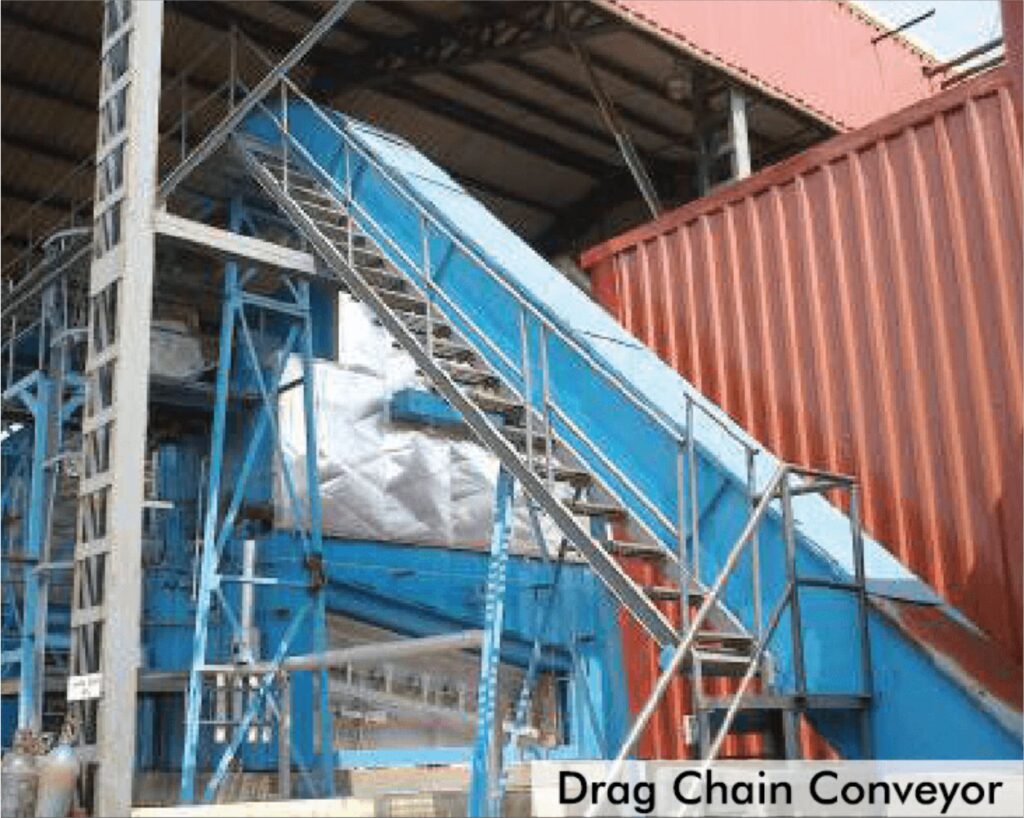

- Drag chain conveyor

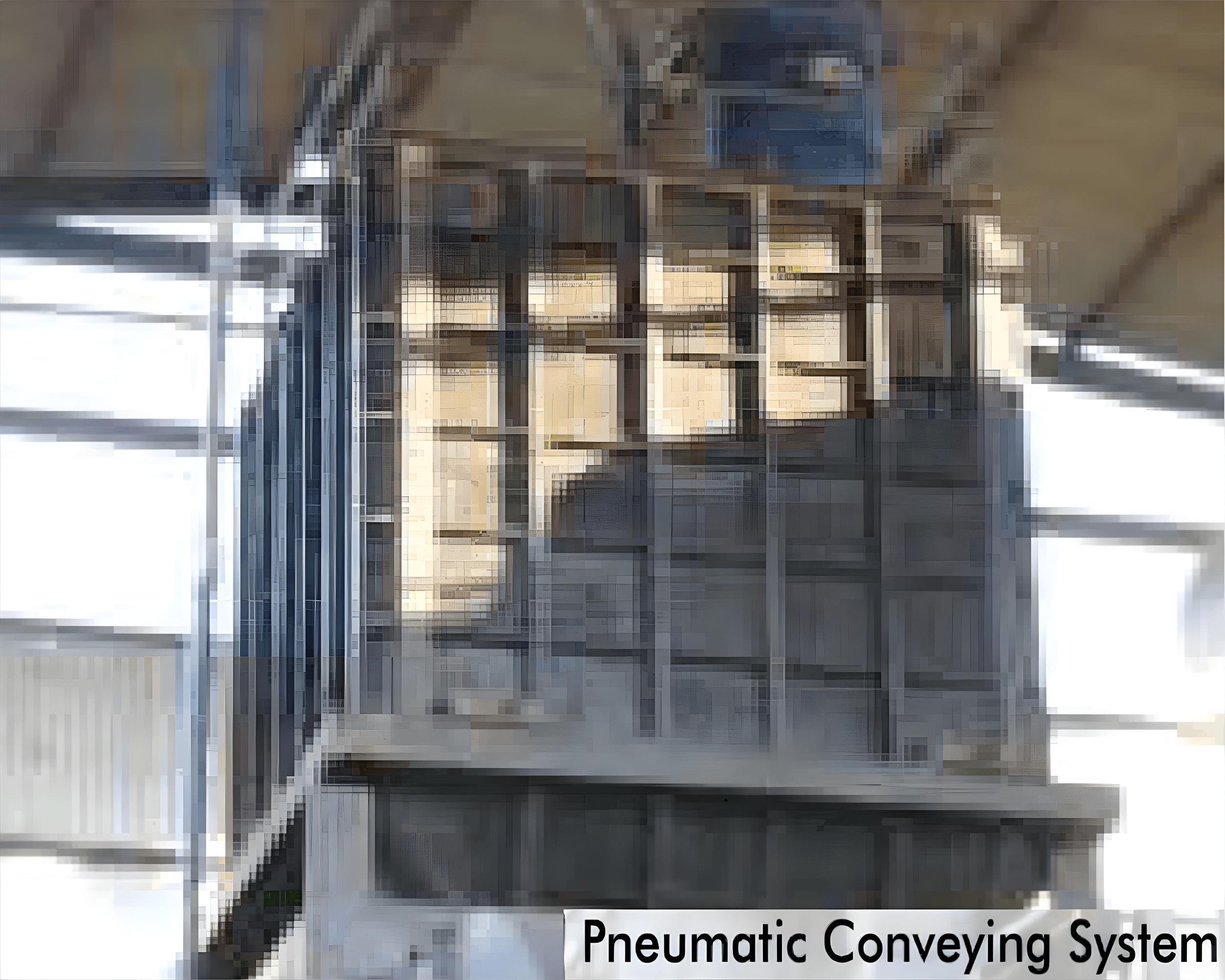

- Pneumatic conveying
- system for small capacity plants

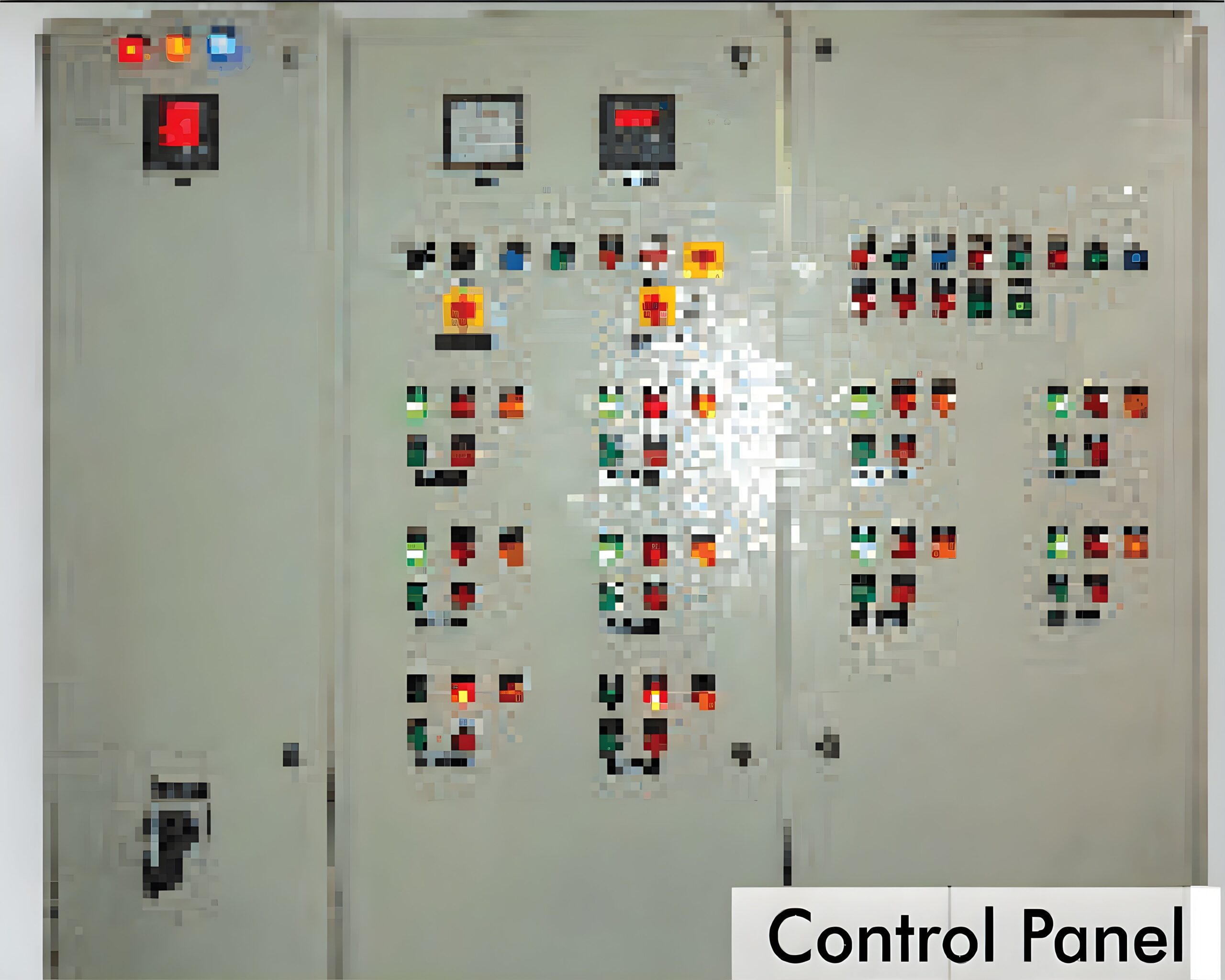

Motor Control center (M.C.C.) – Relay based OR PLC based
Ancillary System/Equipment supplied by AEGIS includes the following:

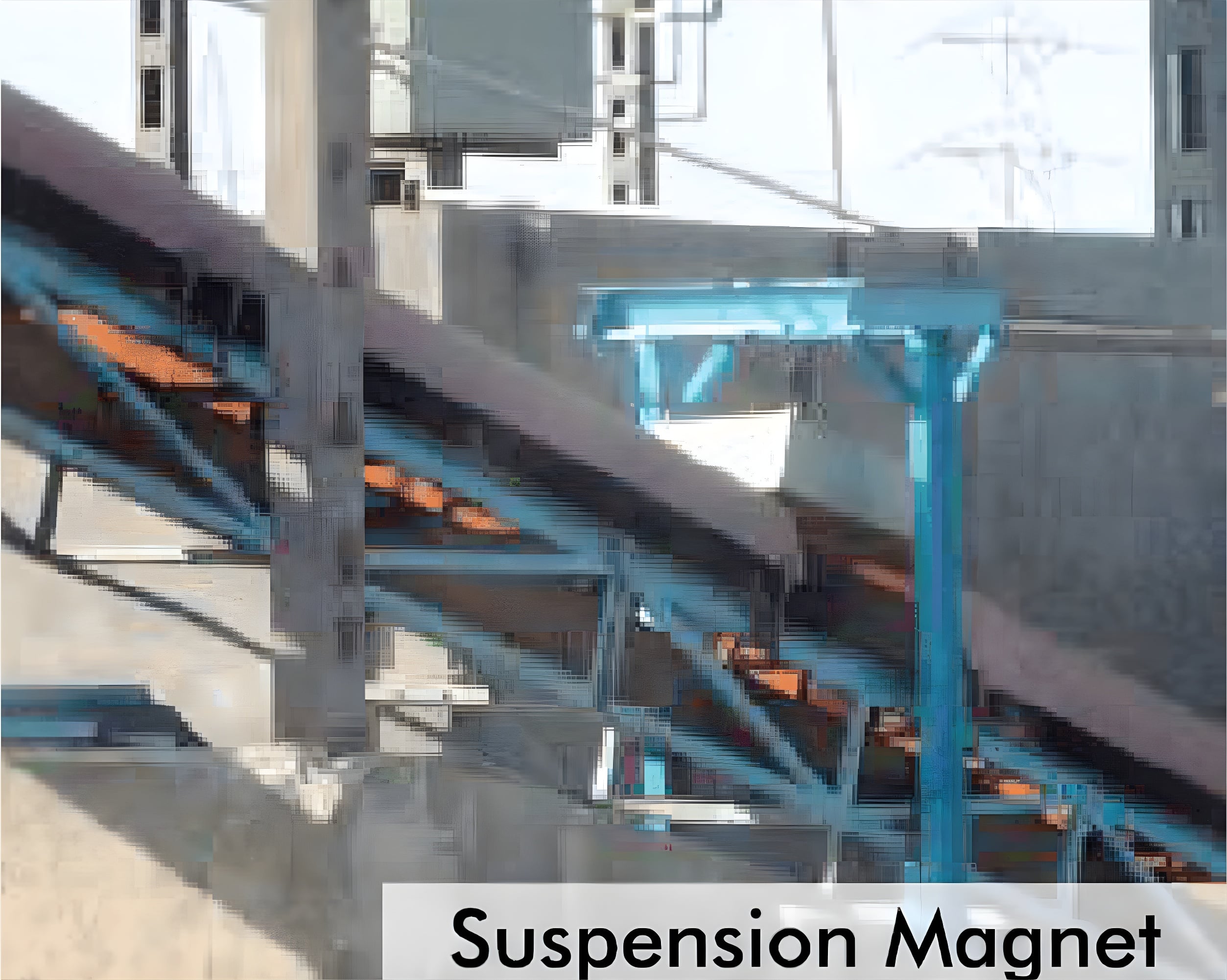

- Magnetic separator (Magnetic pulley / Suspension magnet)

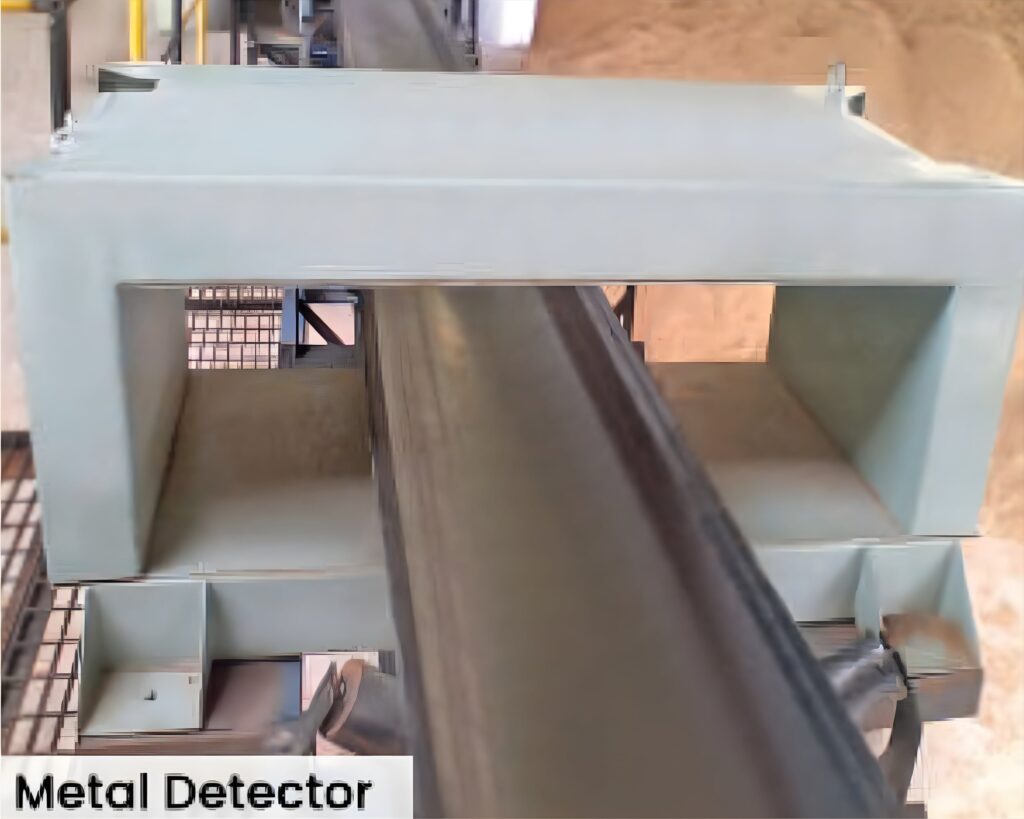

- Metal detector

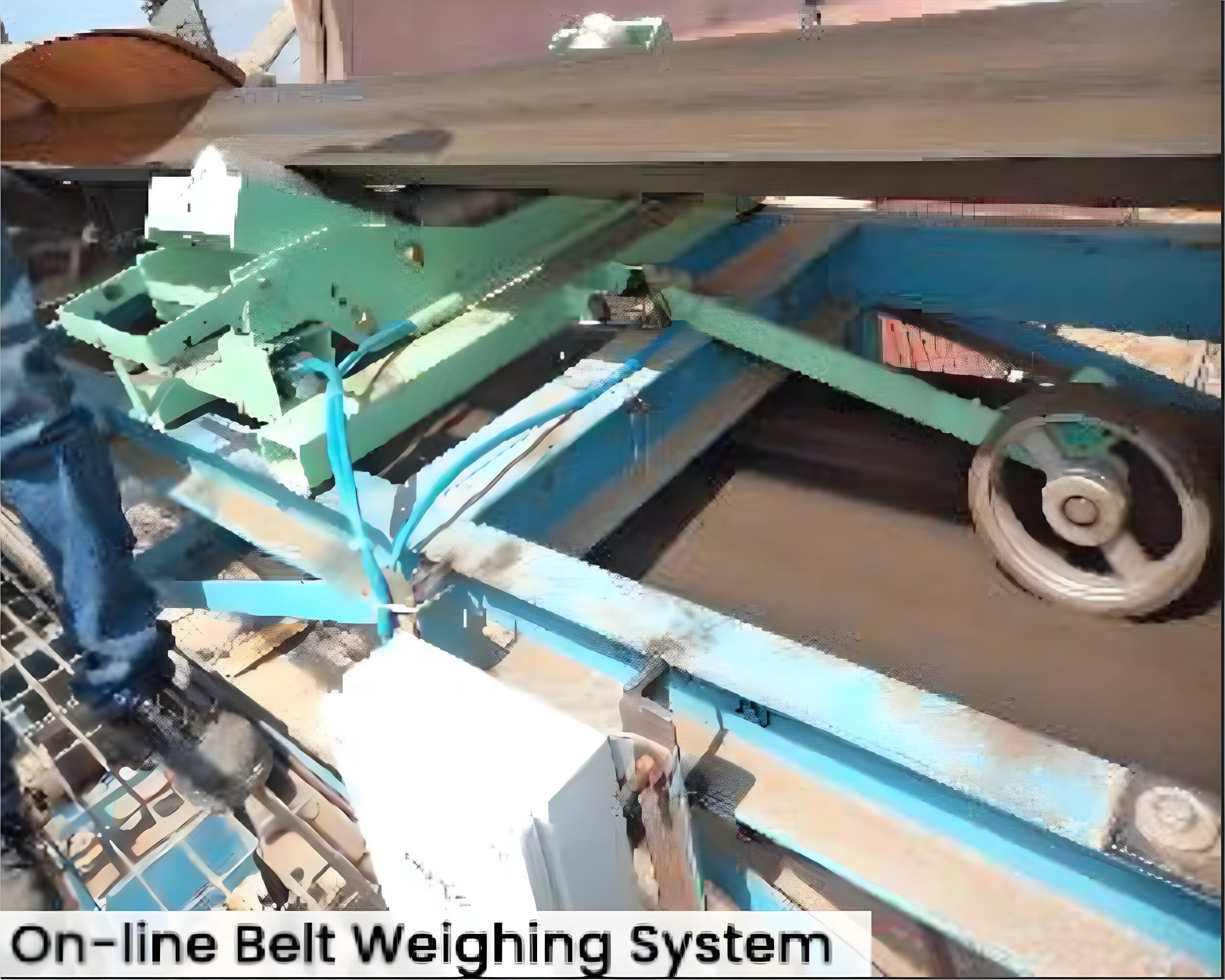

- Belt Weighing System

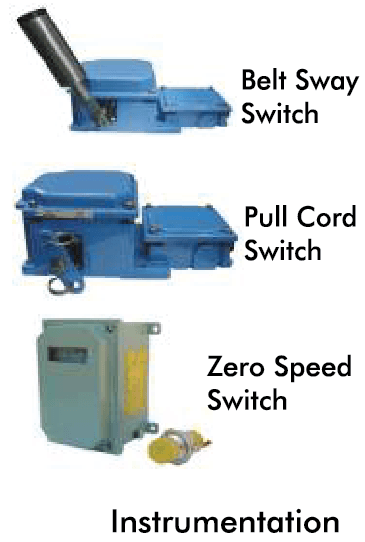

- Instrumentation
- Dust Collection System for controlling dust at various locations

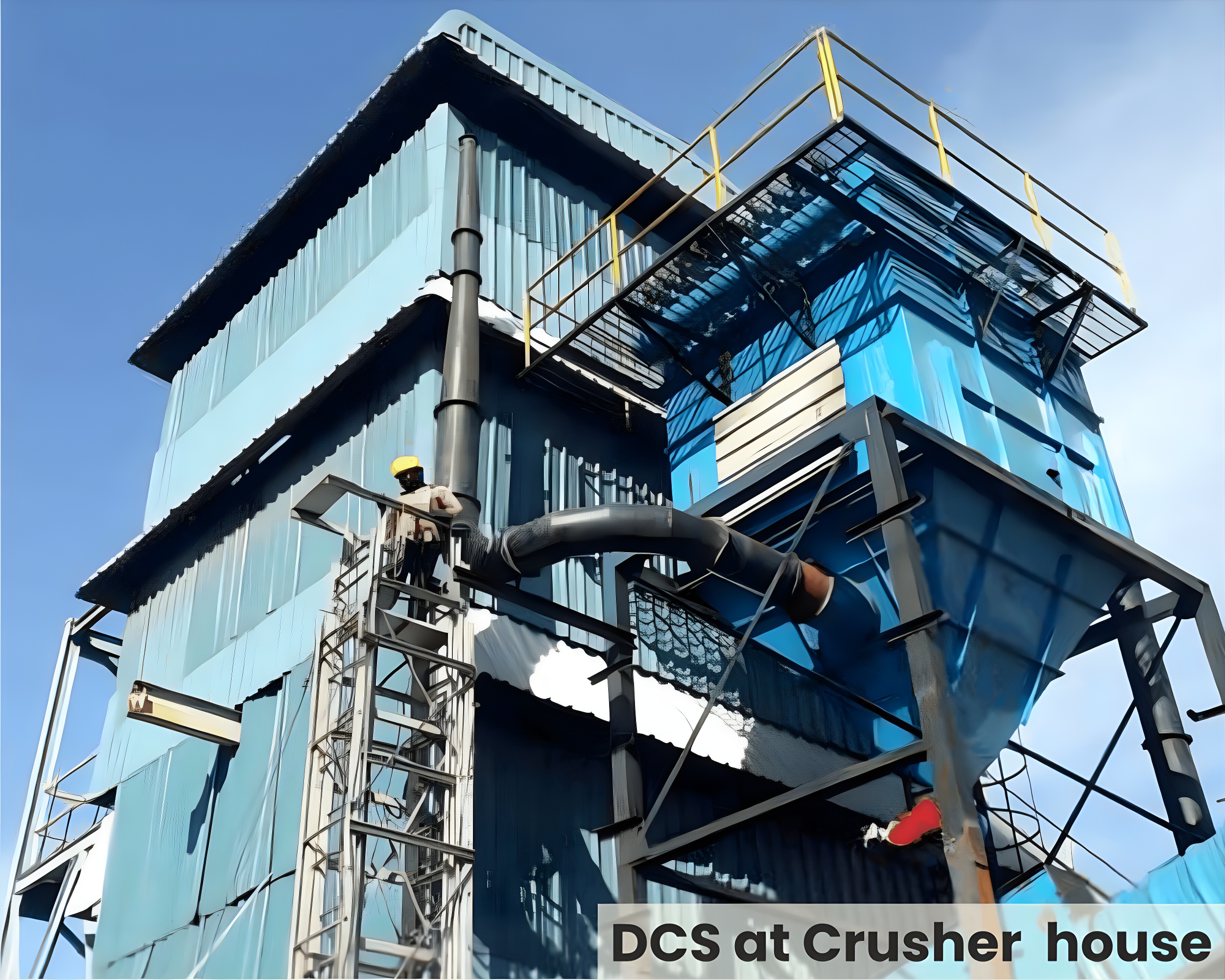

- Dust collection system at the crusher house
- Dust collection system at the bunker top
- Dust Suppression System at Grizzly Inlet

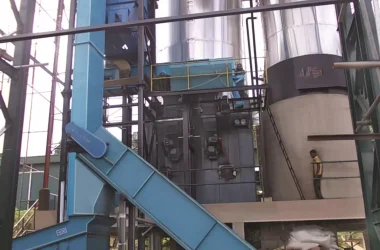

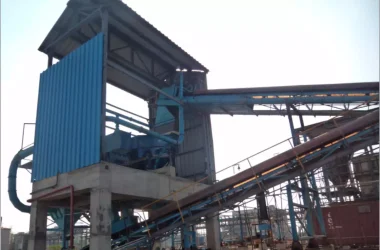

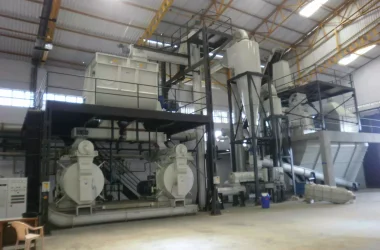

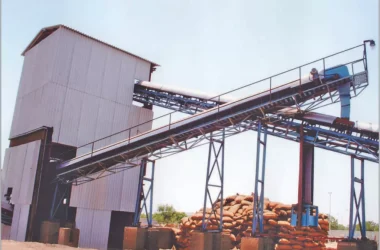

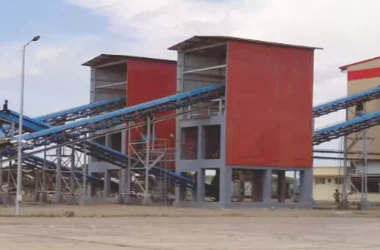

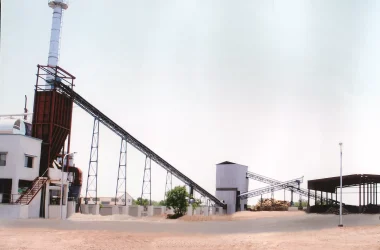

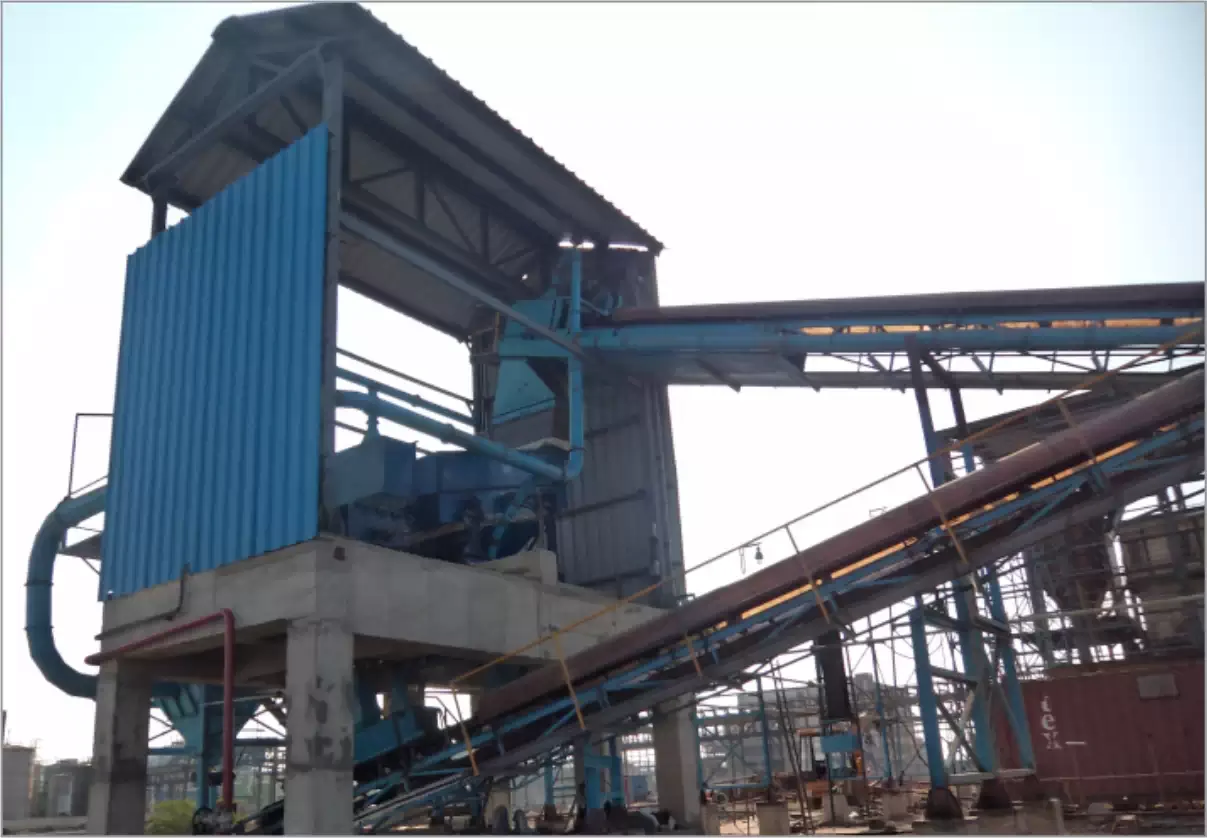

Gallery
