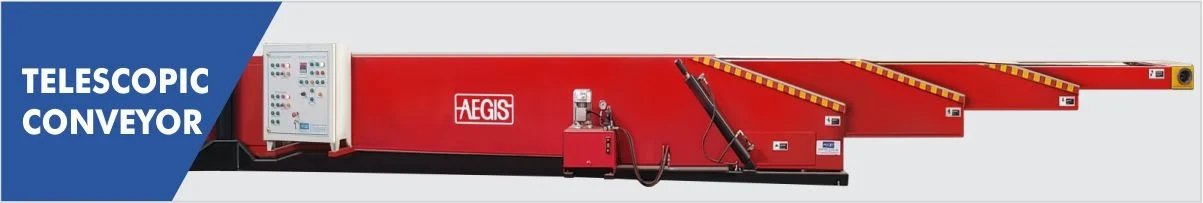

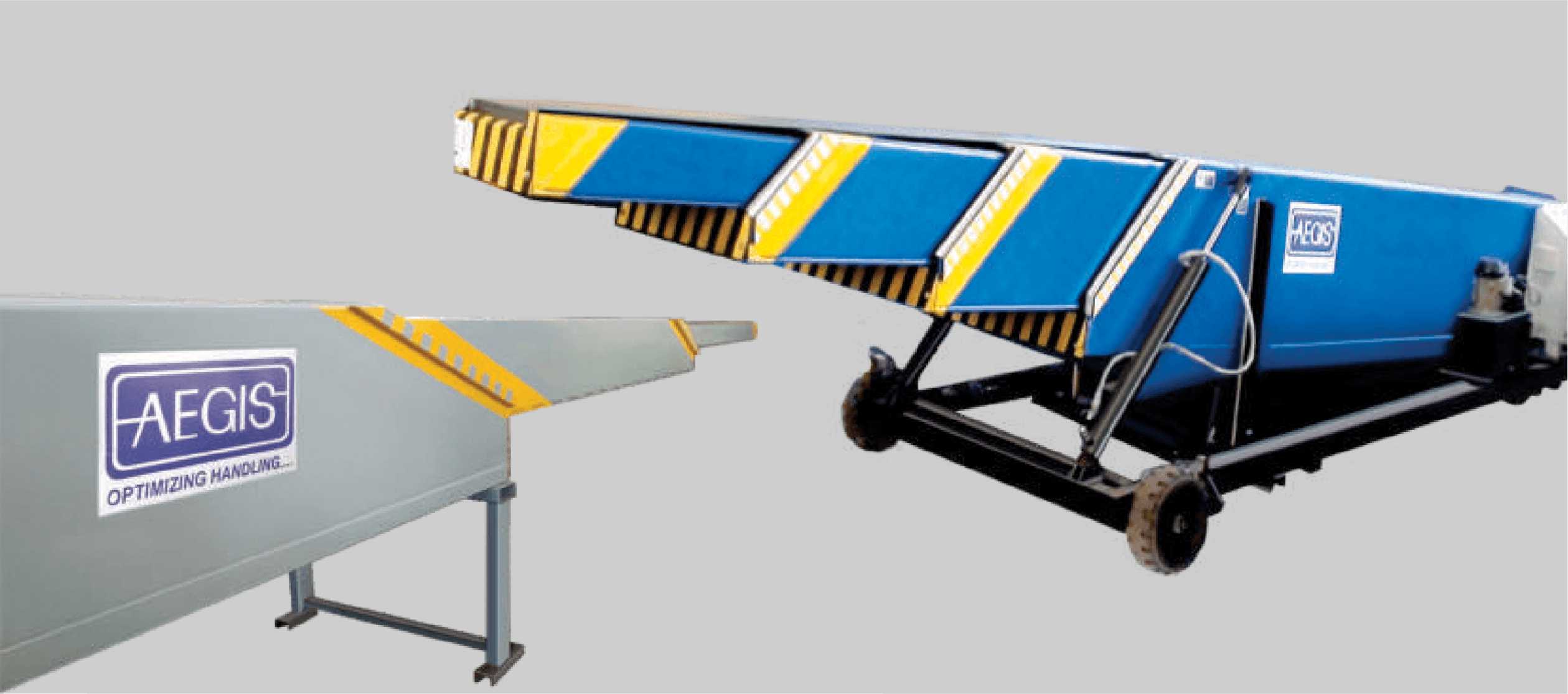

TELESCOPIC CONVEYOR

TELESCOPIC CONVEYOR

Foreseeing growing need for mechanizing truck/ container loading, telescopic conveyors were introduced for mechanizing loading and unloading capability – right to the front of container/truck for high volume dispatch and Telescopic conveyors are conceived and designed in-house and are continuously improvised to offer reliable and trouble free operation.

Several version and options are conceptualized keeping in mind diverse requirement of end users.

GET QUOTE
Mobile, cleated belt conveyor - Structure of aluminum construction to make it light weight

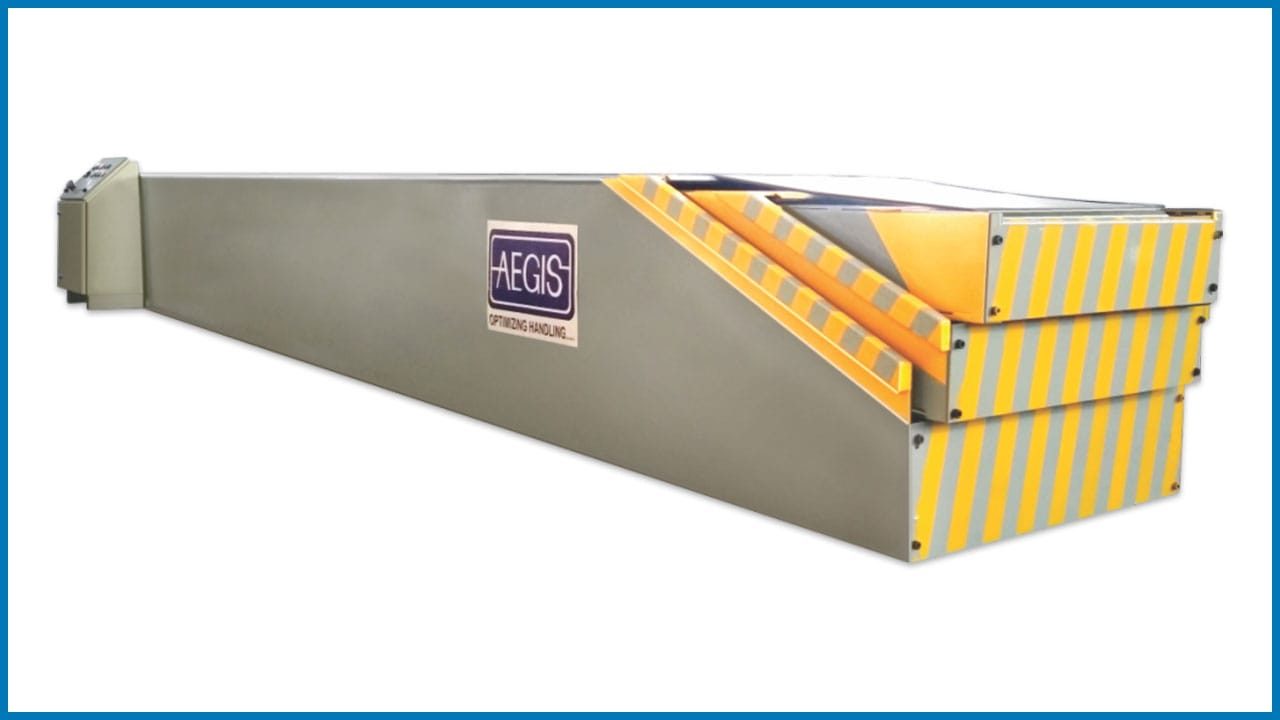

Telescopic conveyor - Fixed, 2 stage

Telescopic conveyors are conceived and designed in-house and are continuously improvised to offer reliable and trouble free operation. Several version and options are conceptualized keeping in mind diverse requirement of end users.

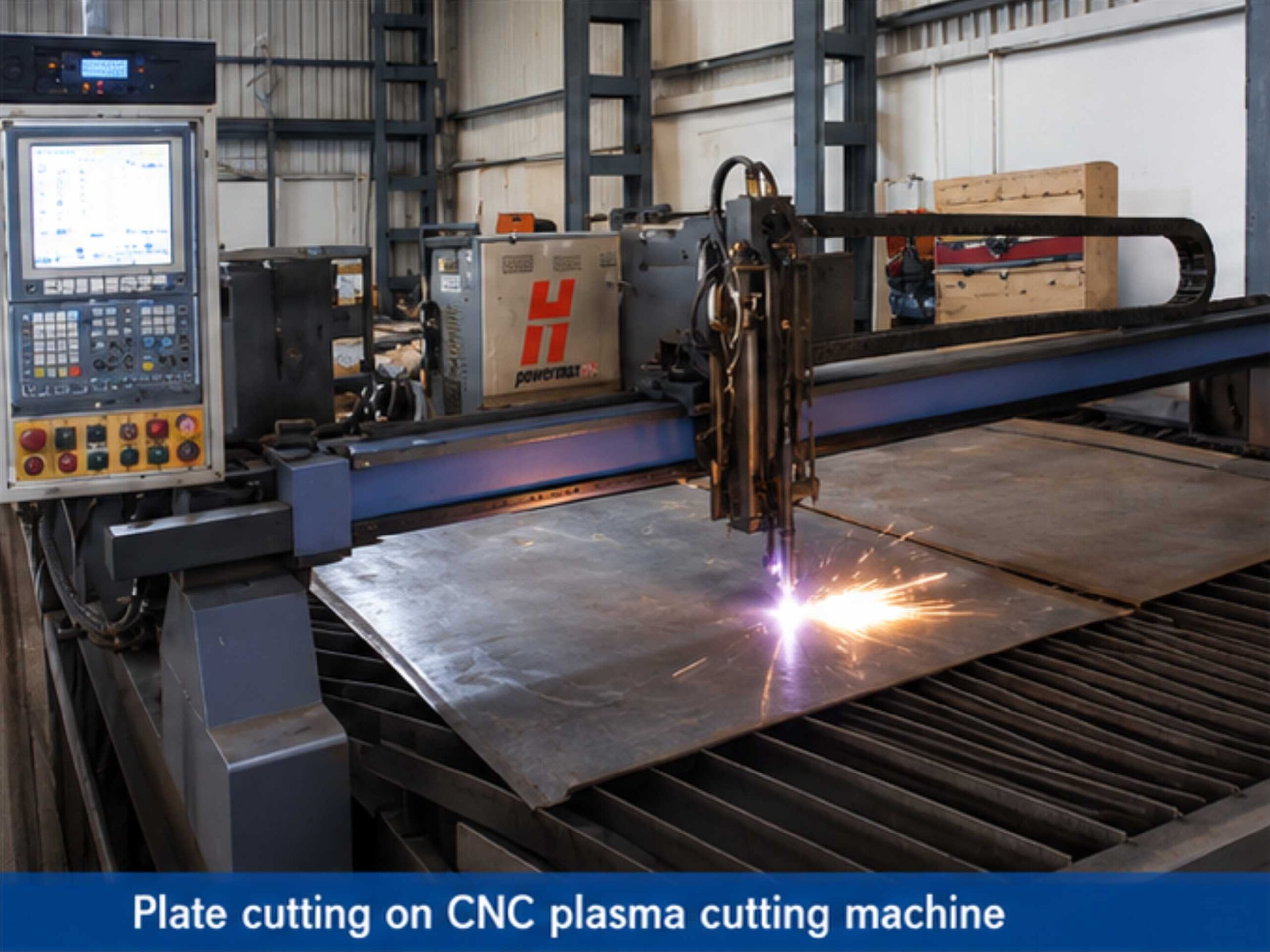

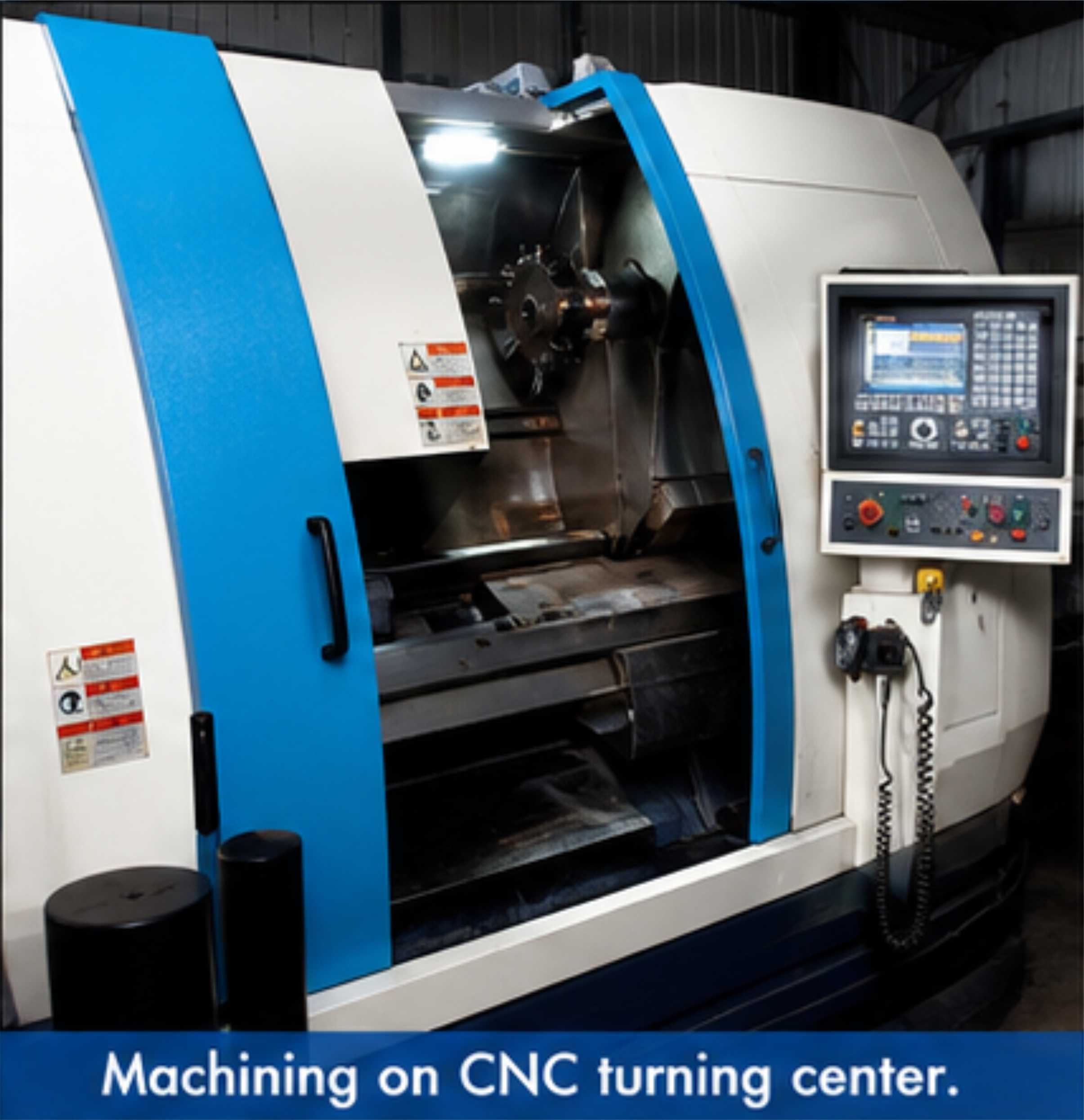

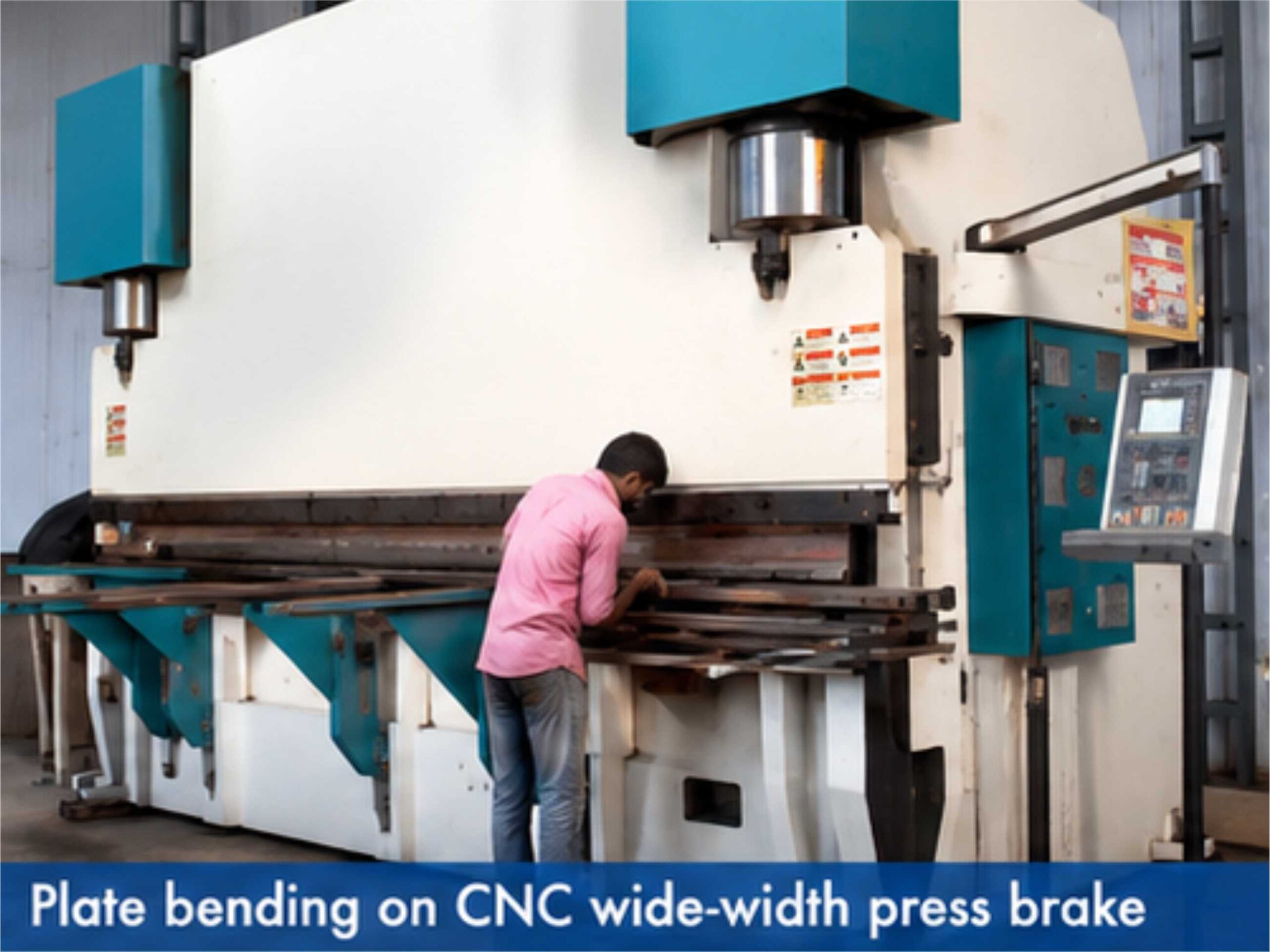

High quality inputs like steel plate/sheet material, alloy steel bar material, etc. are precision fabricated/machined/ ground on CNC machined and hand built / assembled by skilled and specially trained technician using quality bought out items like electric/electronic control system, hard ware and many more. Attention is given to minutest details to ensure reliable and trouble



All machines are designed and manufactured using standard codes and practice.

Laid down inspection and QAP (Quality Assurance Plan) is strictly adhered to, right from sourcing of various inputs to final trial and dispatch of the conveyor.

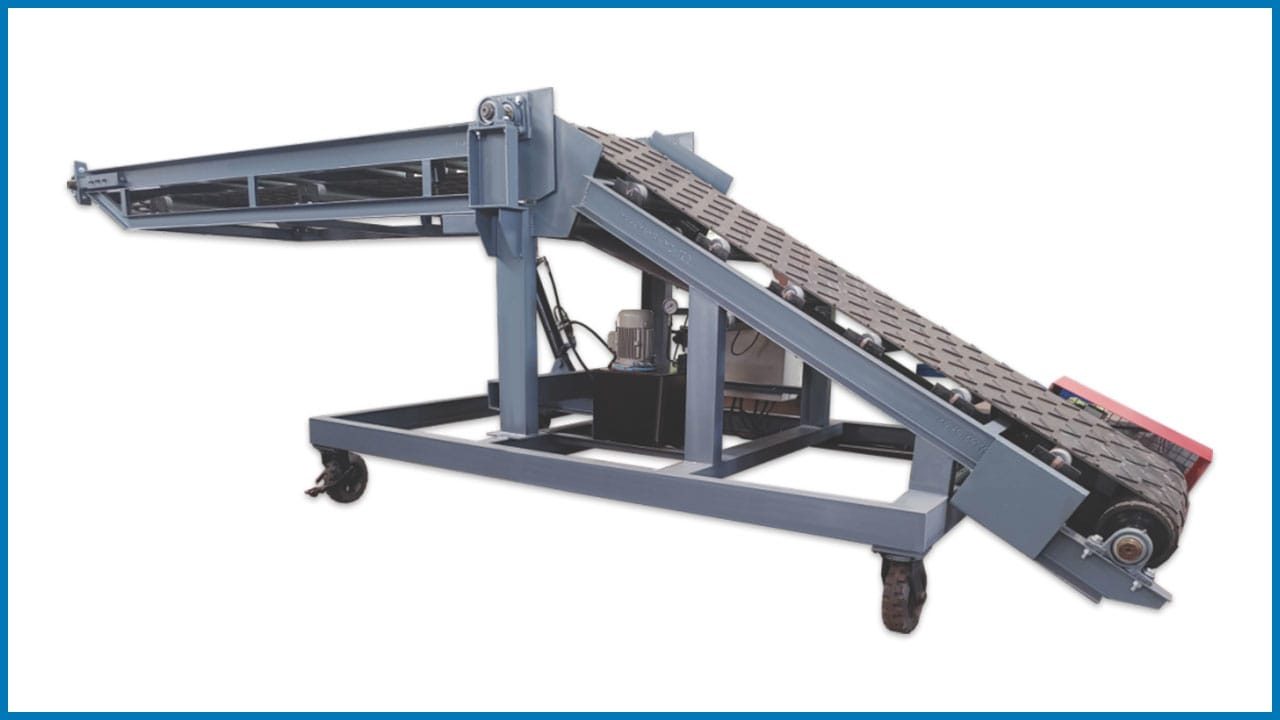

Truck loader cum stacker – Mobile, wheel mounted flat belt conveyor with hydraulically adjustable boom.

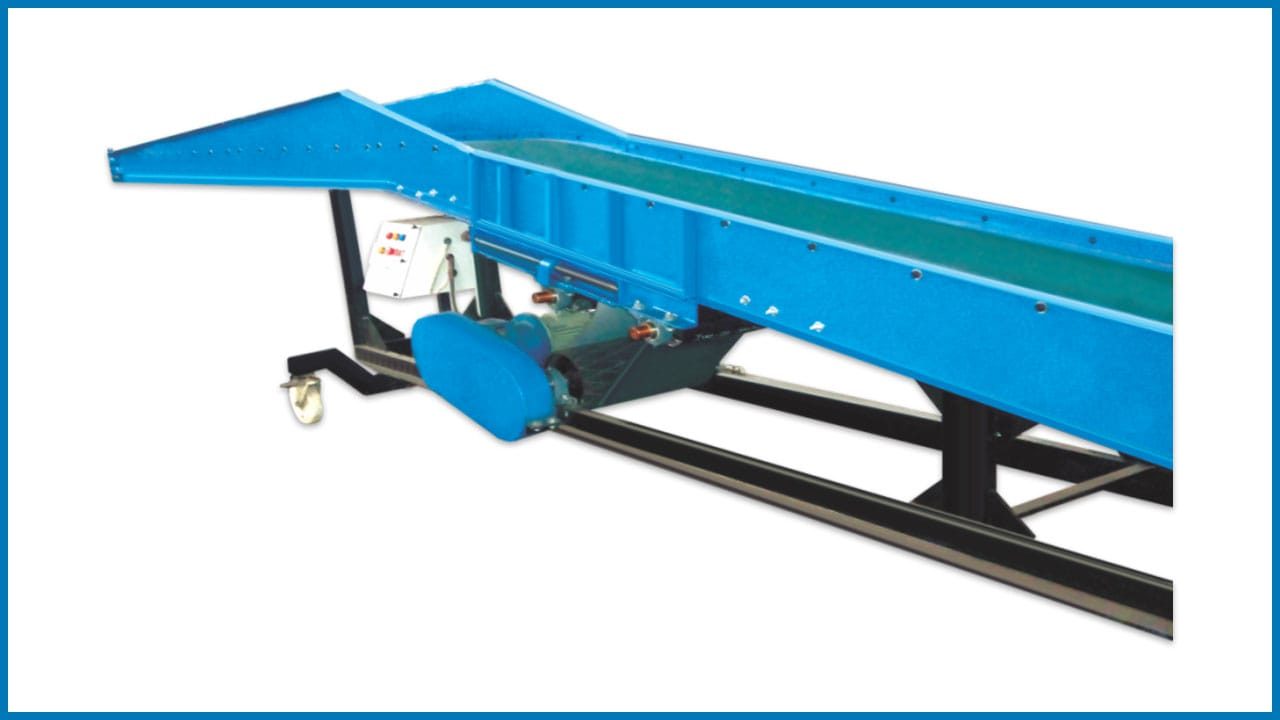

Mobile, Truck Loader – Light duty application, belt type

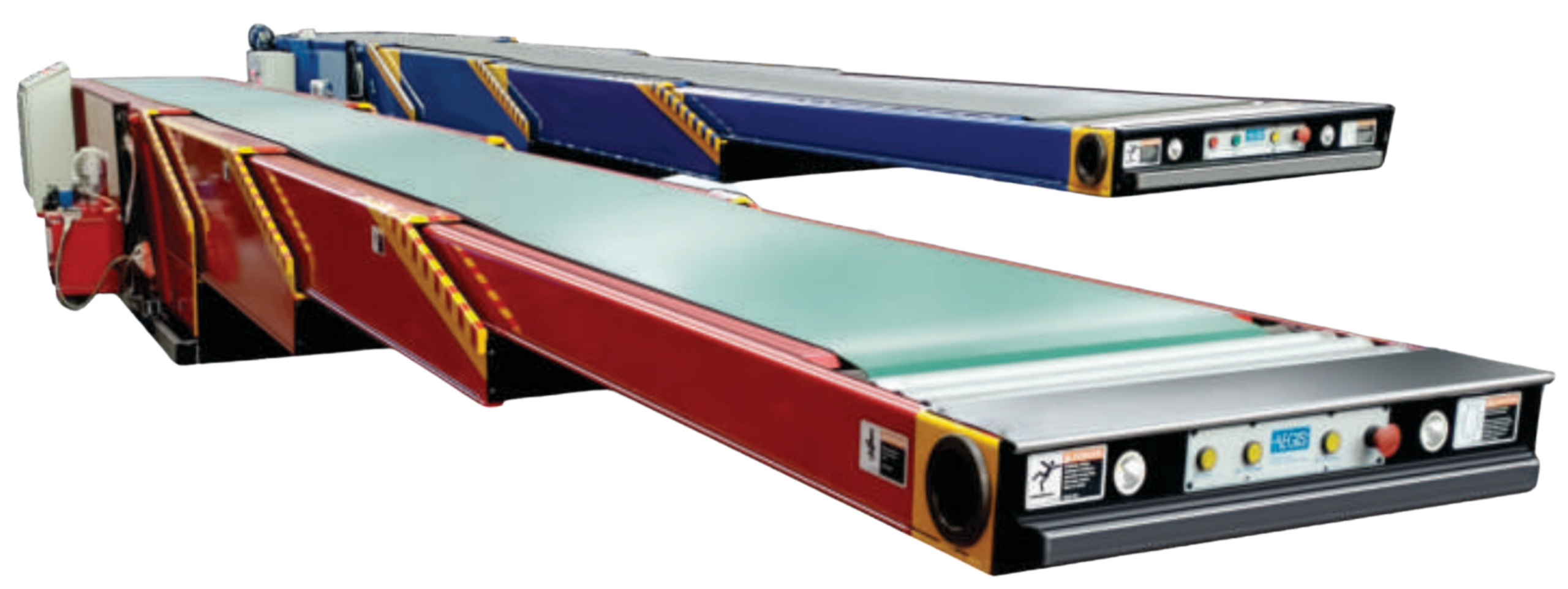

Meeting the increased demands of today’s warehouse and distribution centers, AEGIS multistage telescopic conveyors satisfy all criteria to provide cost effective, reliable and speedy truck/container loading/unloading solutions along with various other supplementary conveyors for in-the-warehouse

CONSTRUCTIONAL AND STANDARD FEATURES

LENGTH

Extended length available from 5500 mm to 14600 mm. Retracted length range from 3500 mm to 5600 mm

BELT

Belt of 2 ply, Rubber (nylon reinforce) PVC / with top cover and ade-quate load rating and with belt width of 400/500/600/700/800 mm

MOVING BOOM SPEED

Telescopic boom extension & retraction speed of 18 meters per minute



BELT SPEED

Variable belt speed through VFD drive in the range of 10 meters per minute to 50 meters per minute or even higher, if required.

SIDE PANEL

Solid plate bent steel.



BOOM SUPPORT

Heavy – duty wheel and rail.



BOOM DRIVE

Geared motor with self-compensating drive arrangement.

PULLEYS / IDLERS / GUIDE WHEEL / BEARING HOUSING

Precision machined out of quality steel / alloy steel material to required tolerance on CNC machines and ground finished.

PAINT

Two coats of primer and paint coat is applied after proper surface cleaning and preparation. Paint shade can be as per customer’s require-ment.

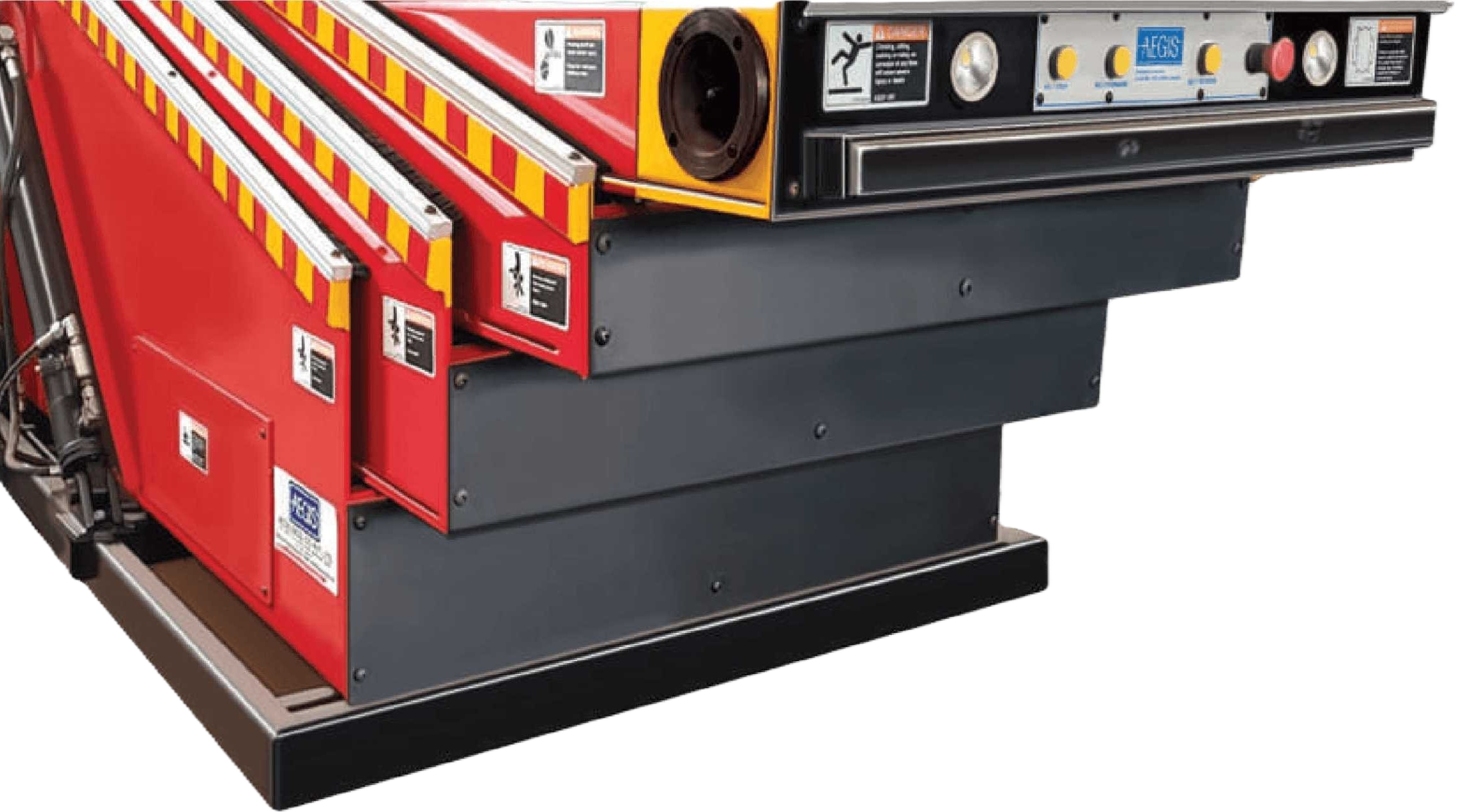

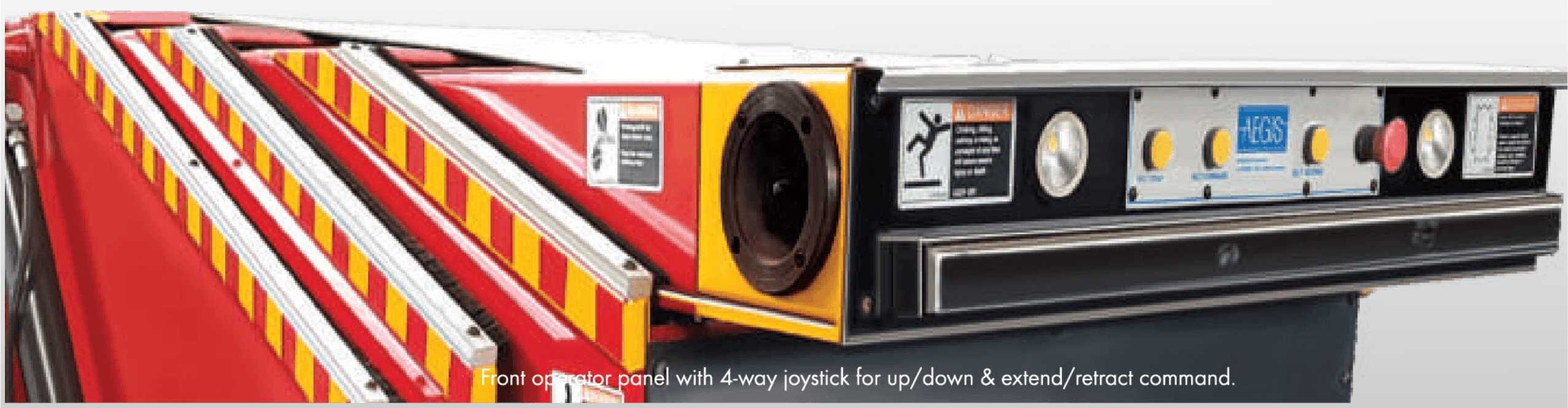

Front operator panel with 4 way joystick for up down & extend or retract command
Front operator panel with 4 way joystick for up down & extend or retract command

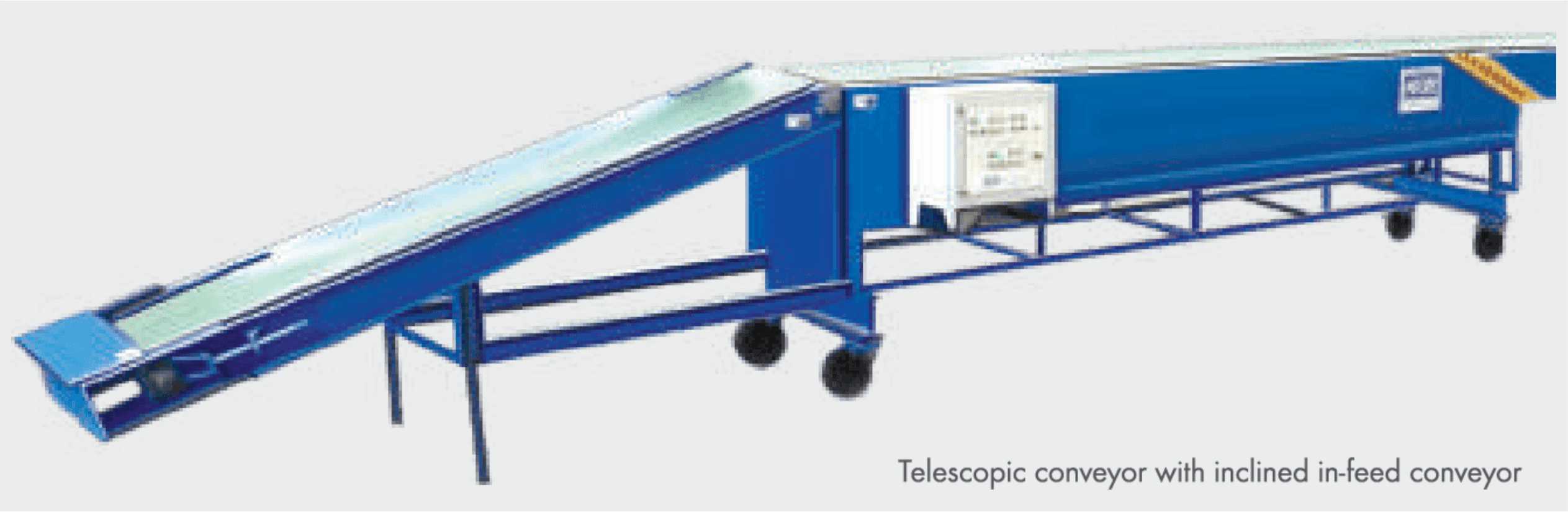

Telescopic conveyor with inclined in-feed conveyor
Telescopic conveyor with inclined in-feed conveyor

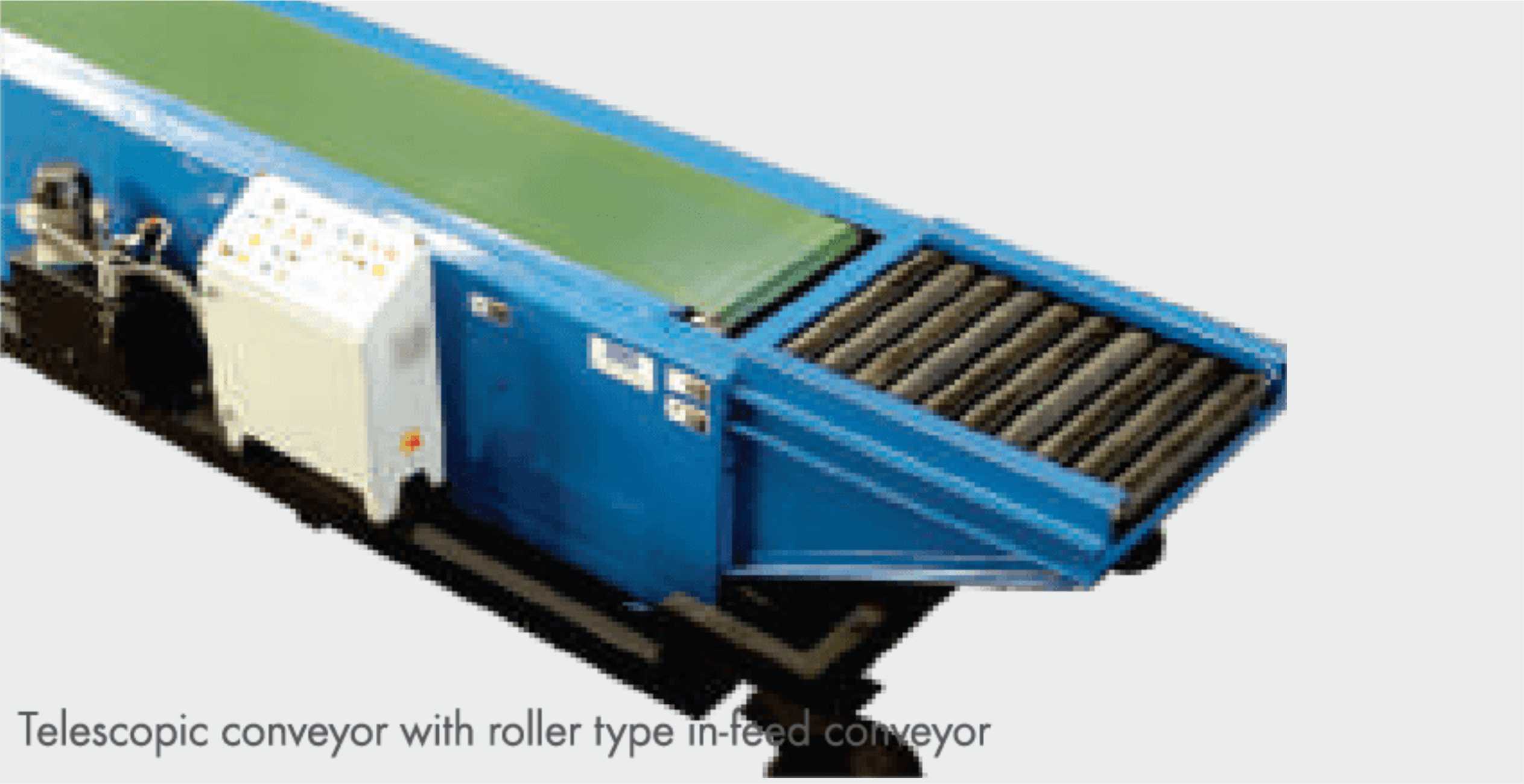

Telescopic conveyor with roller type in-feed conveyor
Telescopic conveyor with roller type in-feed conveyor

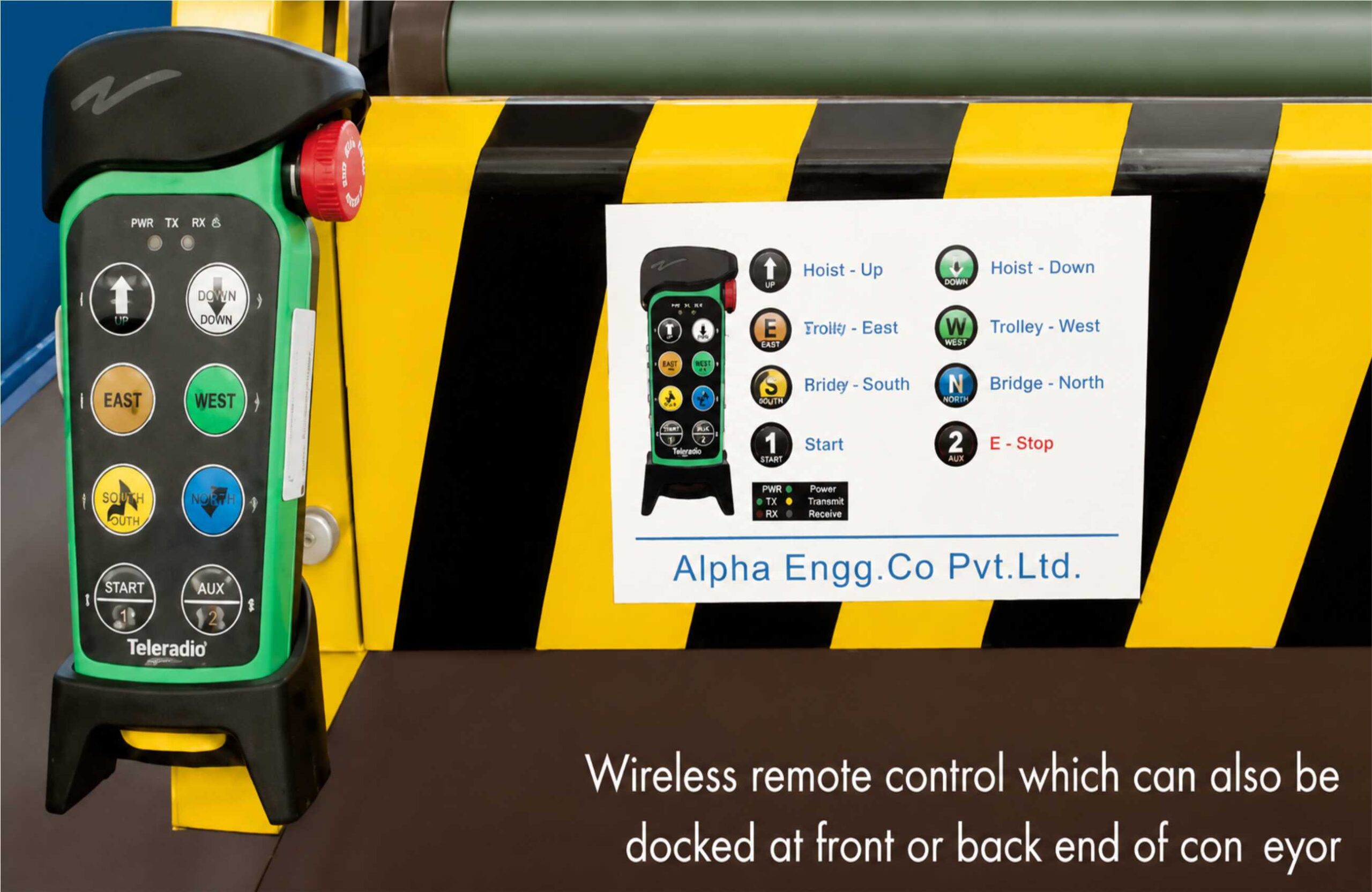

Wireless remote control which can also be docked at front or back end of conveyor
Wireless remote control which can also be docked at front or back end of conveyor

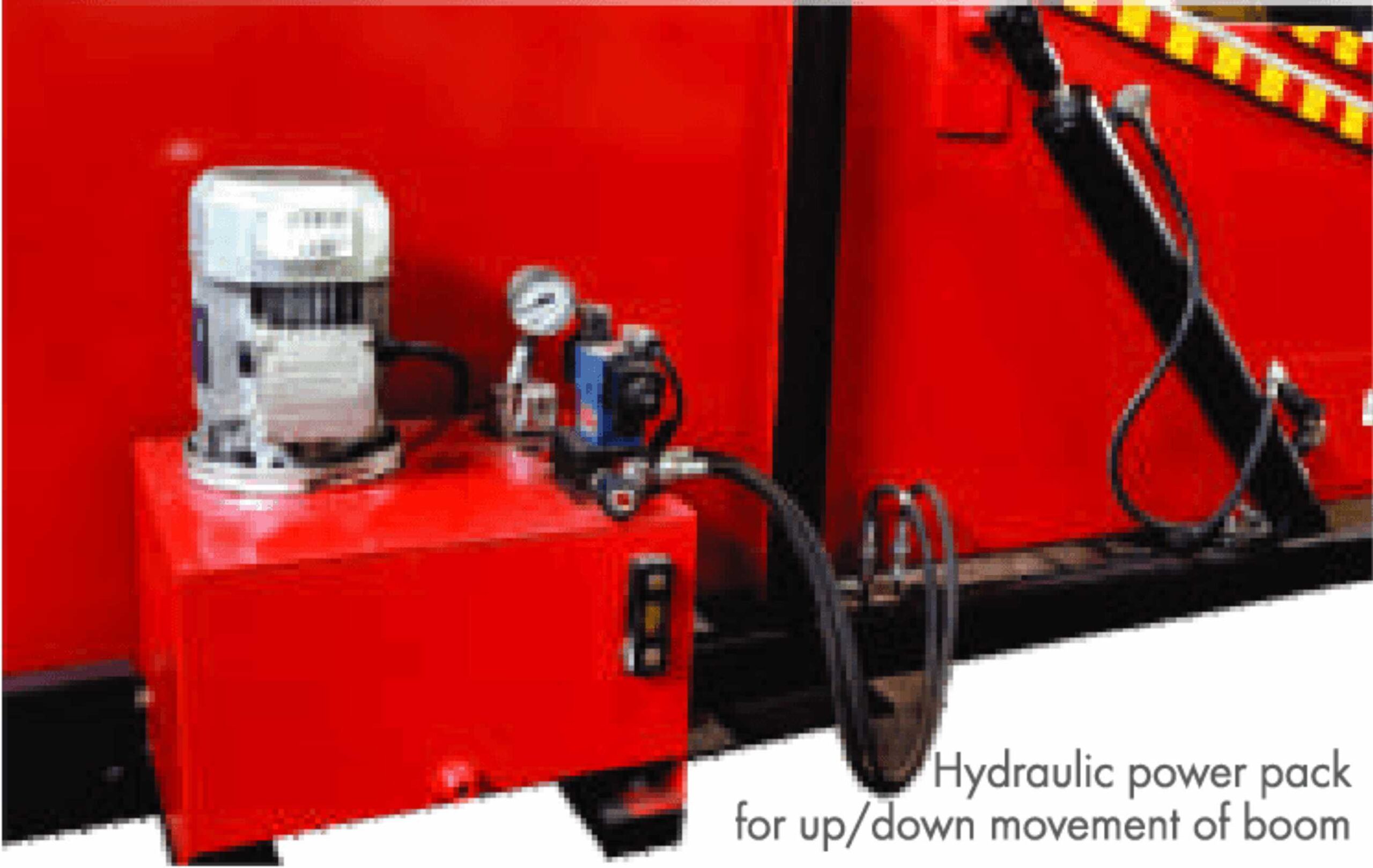

Hydraulic power pack for up and down movement of boom
Hydraulic power pack for up and down movement of boom

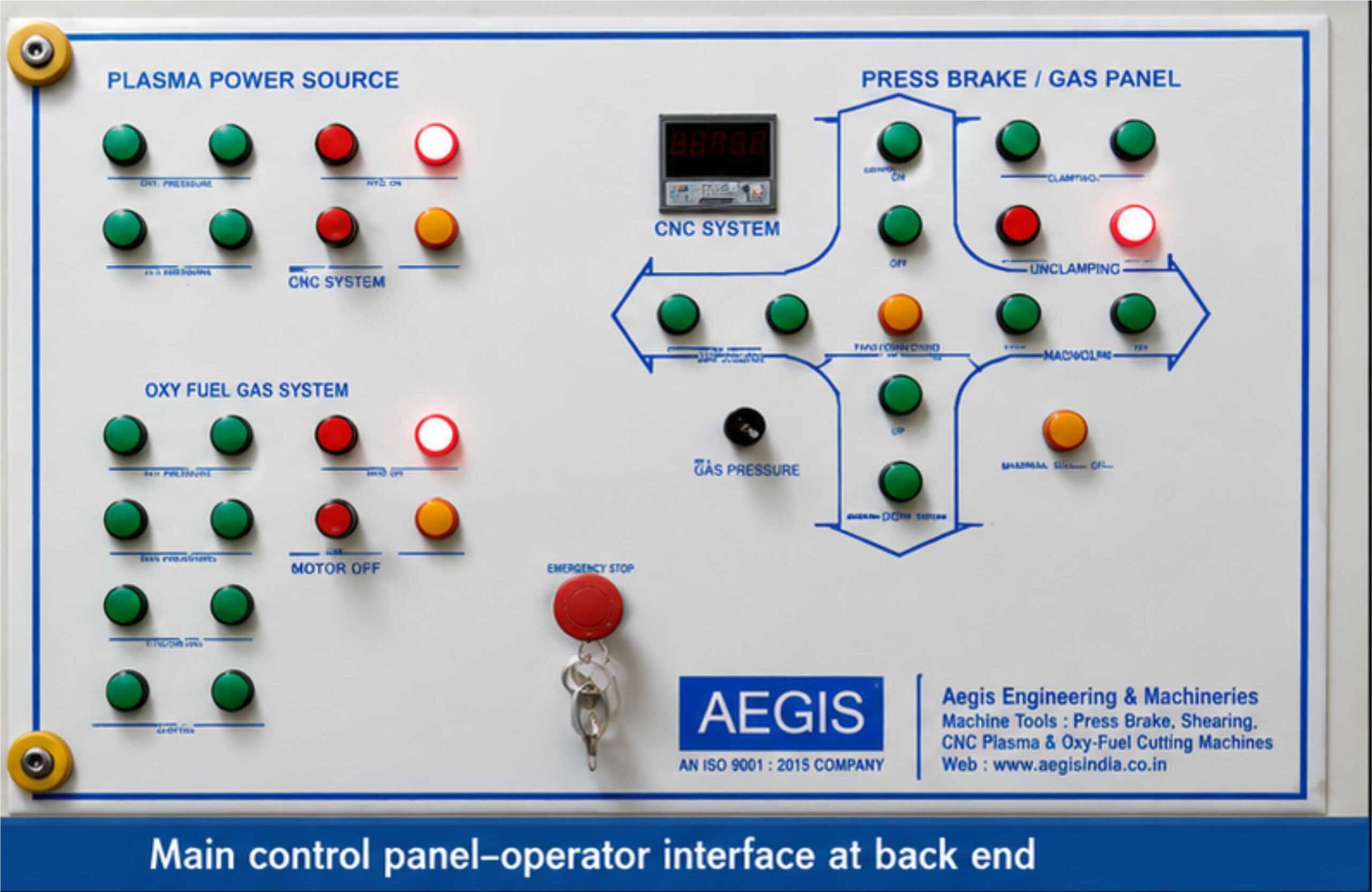

Main control panel–operator interface at back end
Main control panel–operator interface at back end

SELECTION OF TELESCOPIC CONVEYOR

A. Based on difference of level of ware-house floor and truck parking floor

With inclined infeed conveyor – when ware-house/ floor level and truck parking floor level is same.

With inclined infeed conveyor – when ware-house/ floor level and truck parking floor level is same.

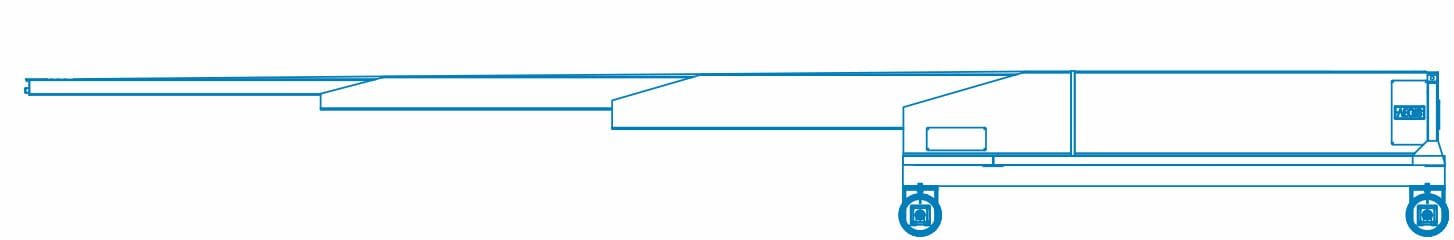

Wheel Mounted

Wheel Mounted

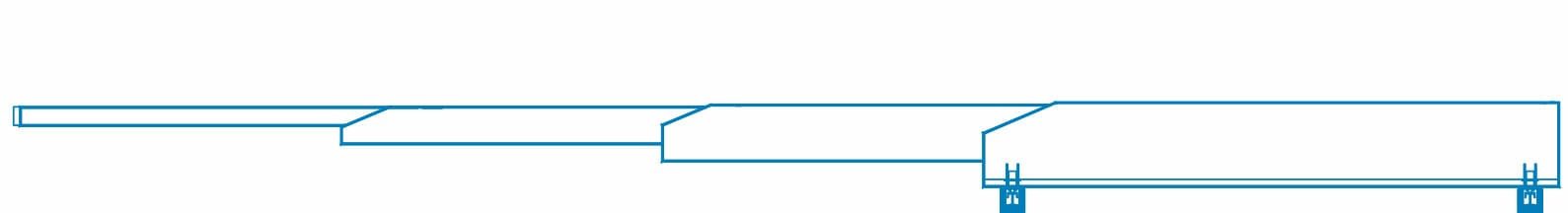

Track Mounted

Track Mounted

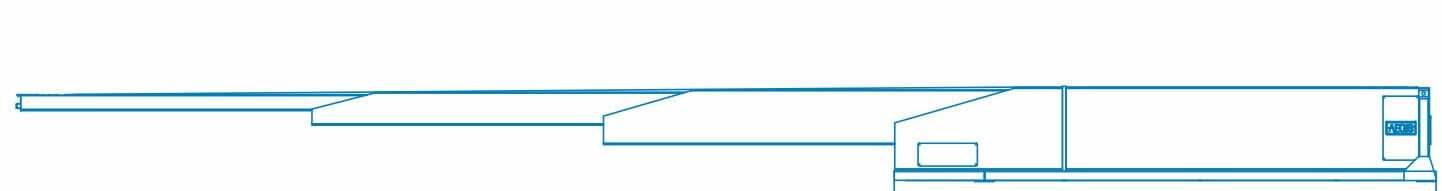

Fixed

Fixed

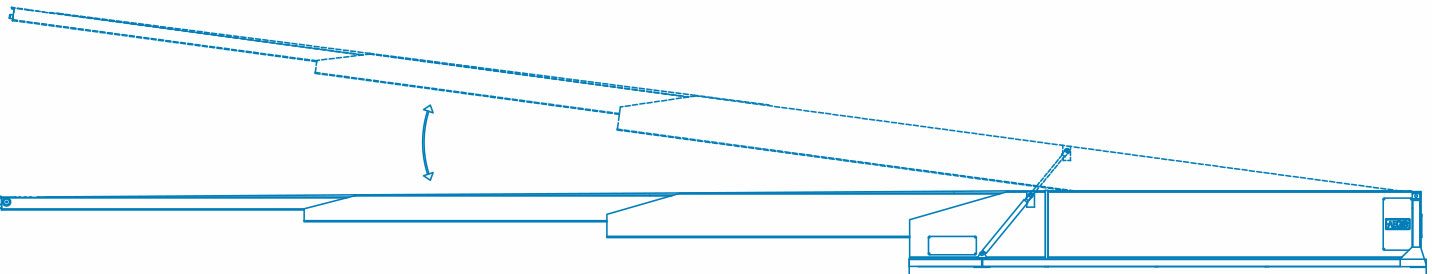

With hydraulically adjusted boom height

With hydraulically adjusted boom height

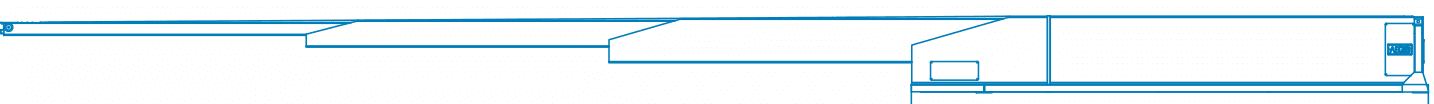

Without hydraulically adjusted boom height

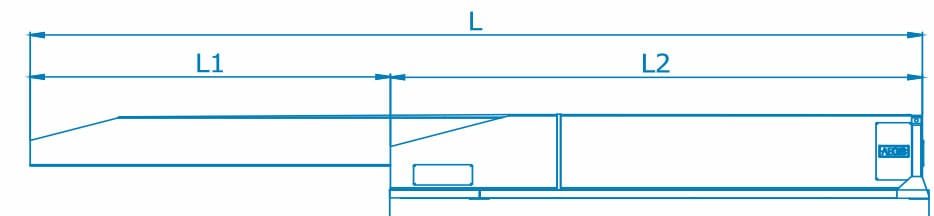

Single Stage

Single Stage

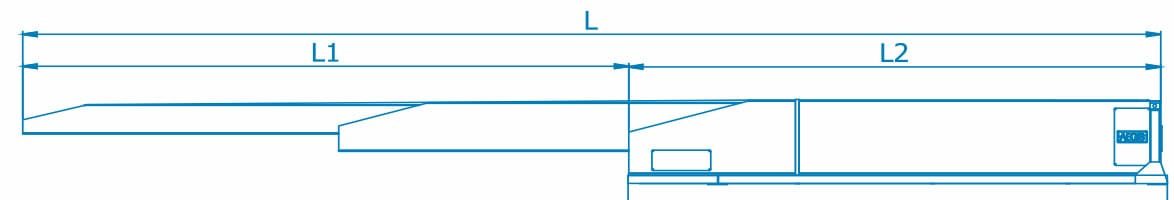

Double Stage

Double Stage

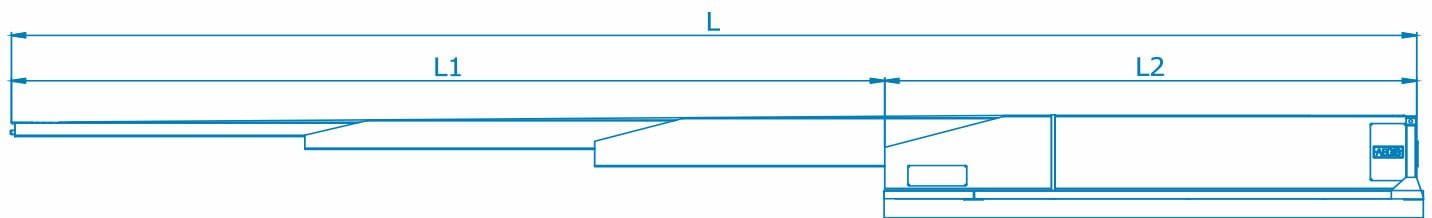

Triple Stage

Triple Stage
  • Front Control
  • Front head lamps
  • Package counter
  • Wireless remote control
  • Collision sensor

NOTE:

  • Apart from above, machine can be conceptualized based on specific requirement and special features to integrate with existing system
  • Telescopic Conveyor can be supplied along with set of supplementary conveyor system to mechanize handling within the warehouse, like mobile floor conveyors, stacker, floor to floor conveyors, etc.

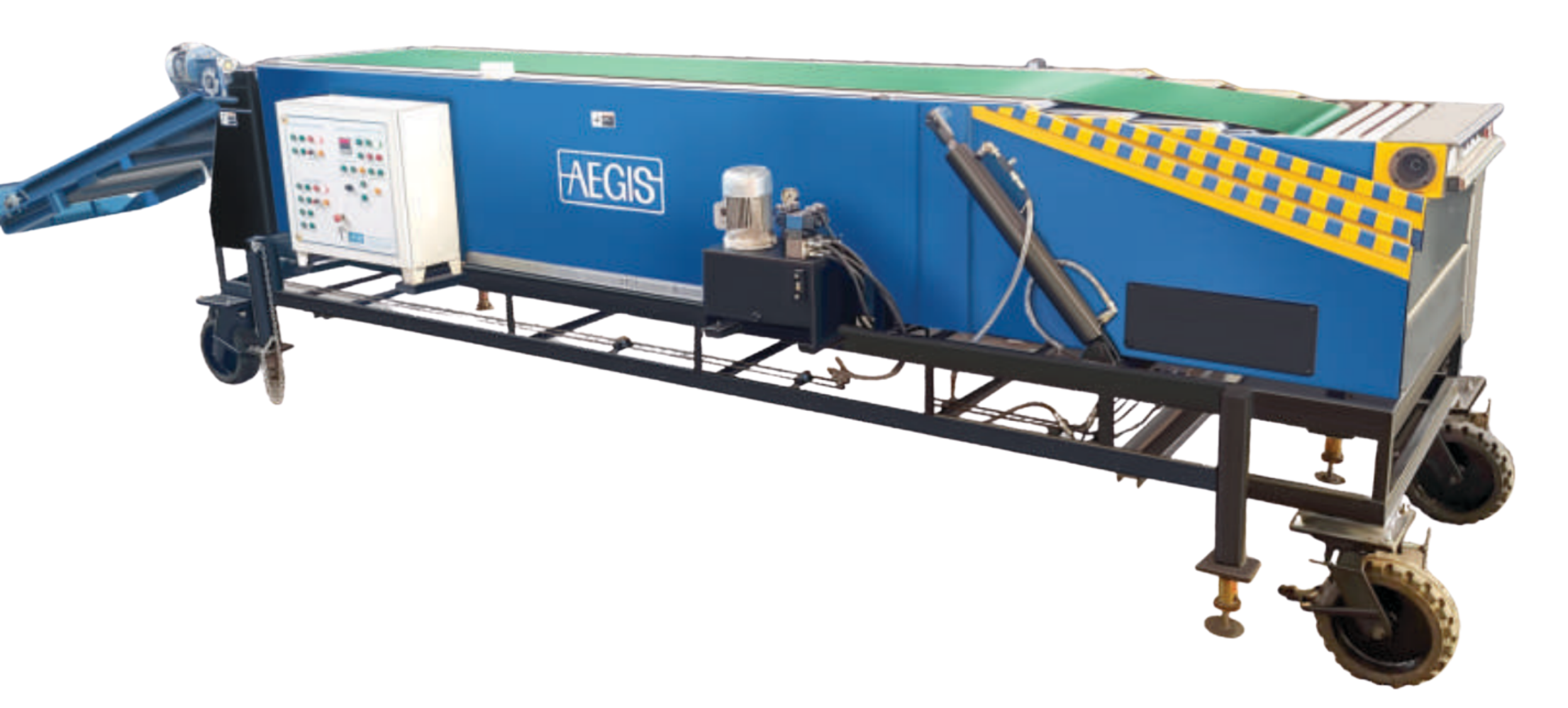

Telescopic conveyor - Mobile, 3 stage with hydraulically adjusted boom inclination & In-feed roller conveyor

We can also supply other supplementary conveyor/stacker/loader for handling of Bags / Boxes / Cartoons within the warehouse/godown. Some of the installation are as below:

Truck loader cum stacker – Mobile, wheel mounted flat belt conveyor with hydraulically adjustable boom.
Truck loader cum stacker – Mobile, wheel mounted flat belt conveyor with hydraulically adjustable boom.
Inclined flat belt conveyor – For transferring tea bags on mezzanine floor in warehouse
Inclined flat belt conveyor – For transferring tea bags on mezzanine floor in warehouse
Telescopic conveyor - Fixed, 2 stage
Telescopic conveyor - Fixed, 2 stage
Mobile, cleated belt conveyor - Structure of aluminum construction to make it light weight
Mobile, cleated belt conveyor - Structure of aluminum construction to make it light weight
Mobile, Truck Loader – Light duty application, belt type
Mobile, Truck Loader – Light duty application, belt type
Mobile, Flat Belt Conveyor – For horizontal transfer of bags within godown/warehouse.
Mobile, Flat Belt Conveyor – For horizontal transfer of bags within godown/warehouse.
Bag Stacker – Mobile, wheel mounted, chain/slat type with manual winching for boom height adjustment for handling soda ash bags.
Bag Stacker Mobile wheel mounted, chain

RANGE OF ACTIVITIES

A. System Engineering

Bulk material handling systems like:

  • Fuel Processing & Handling System
  • Port Mechanization
  • Warehouse Mechanization
  • Ash Handling System
  • Municipal Solid Waste Handling System.
  • and many more...

For Bulk Handling

  • Belt Conveyor
  • Screw Conveyor
  • Bucket Elevator
  • Vibratory Screen
  • Hammer Crusher
  • Rotary Airlock Valve
  • Slide Gate Valve

For Unit (Boxes / Cartoons / Bags) Handling

  • Telescopic Conveyor
  • Roller Conveyor
  • Bag Stacker
  • Slide Gate Valve
  • Dust Collection System
  • Unitary Bag Filter
  • Telescopic Chute
  • AEGIS offers Technical Services under following two categories aimed at improving the current method of handling material through mechanization & avoidance of multiple handling:
  • Audit Services - Aimed at quantification of handling cost
  • Optimization Services - Aimed at suggesting mechanization scheme for optimal handling
