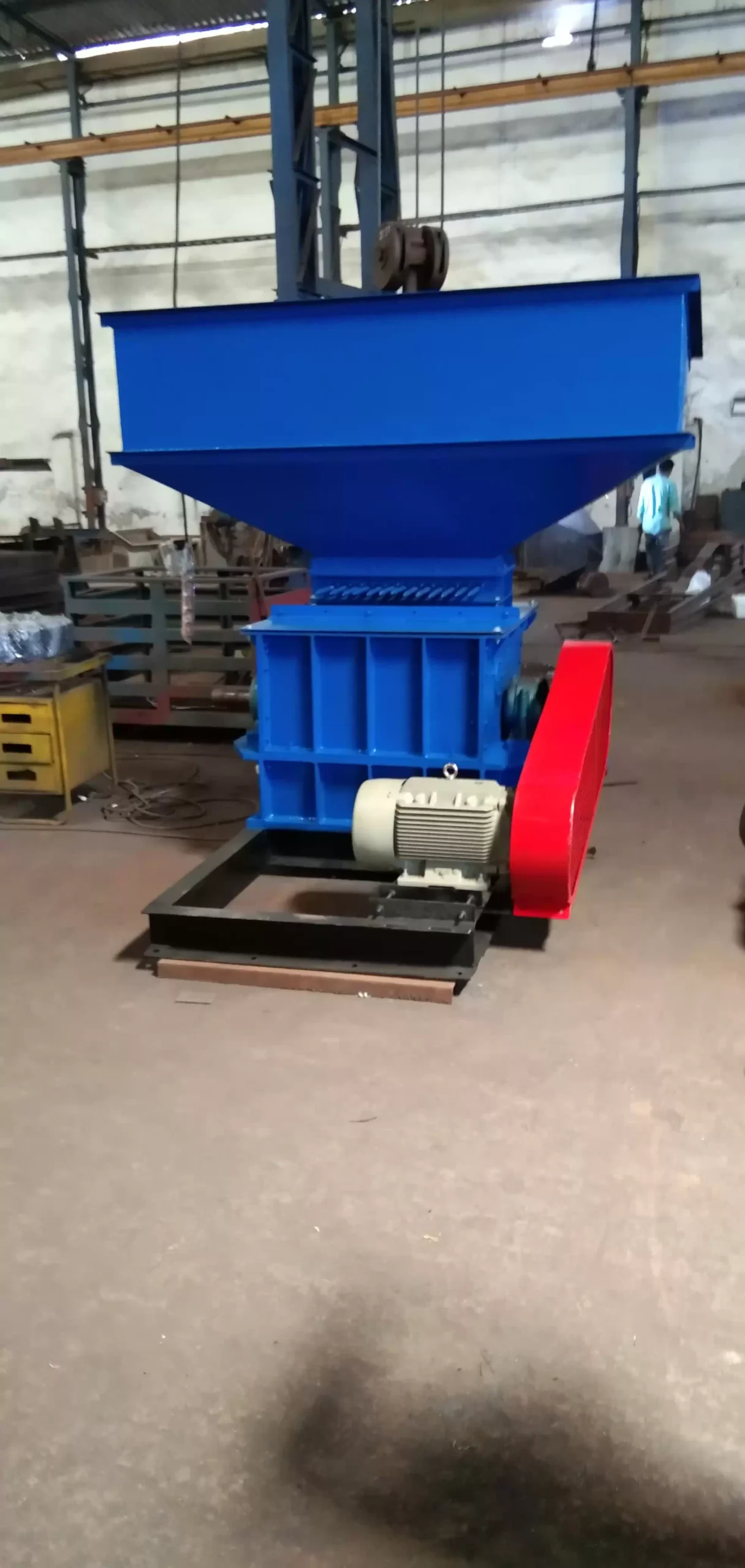

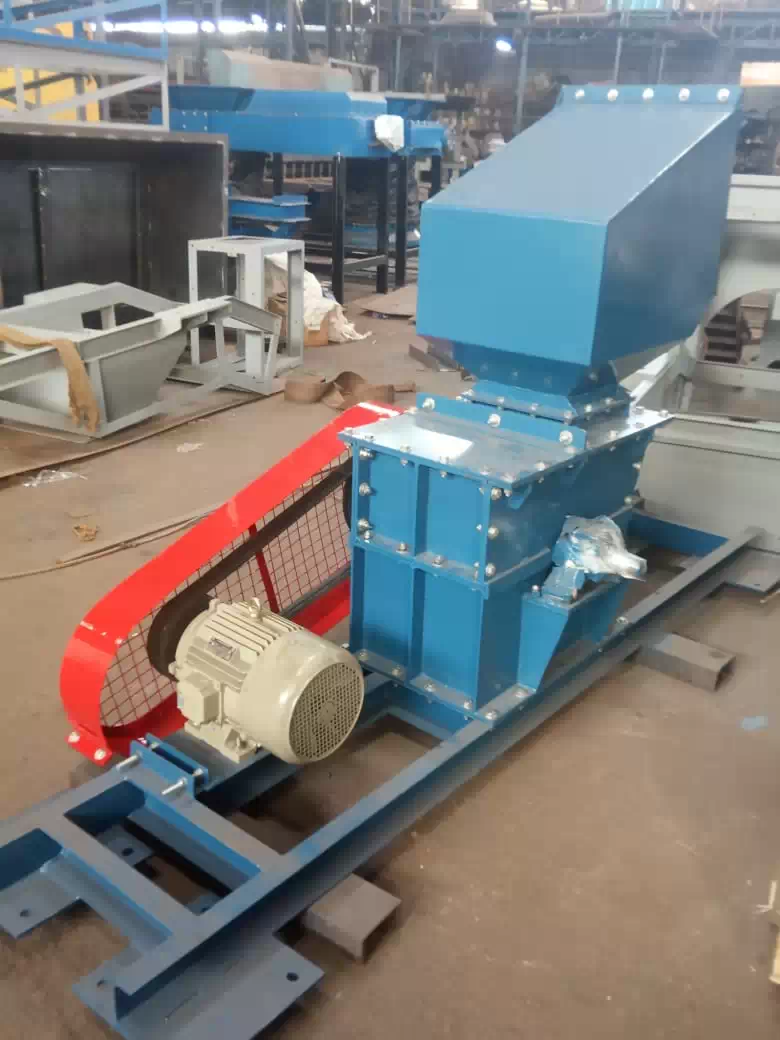

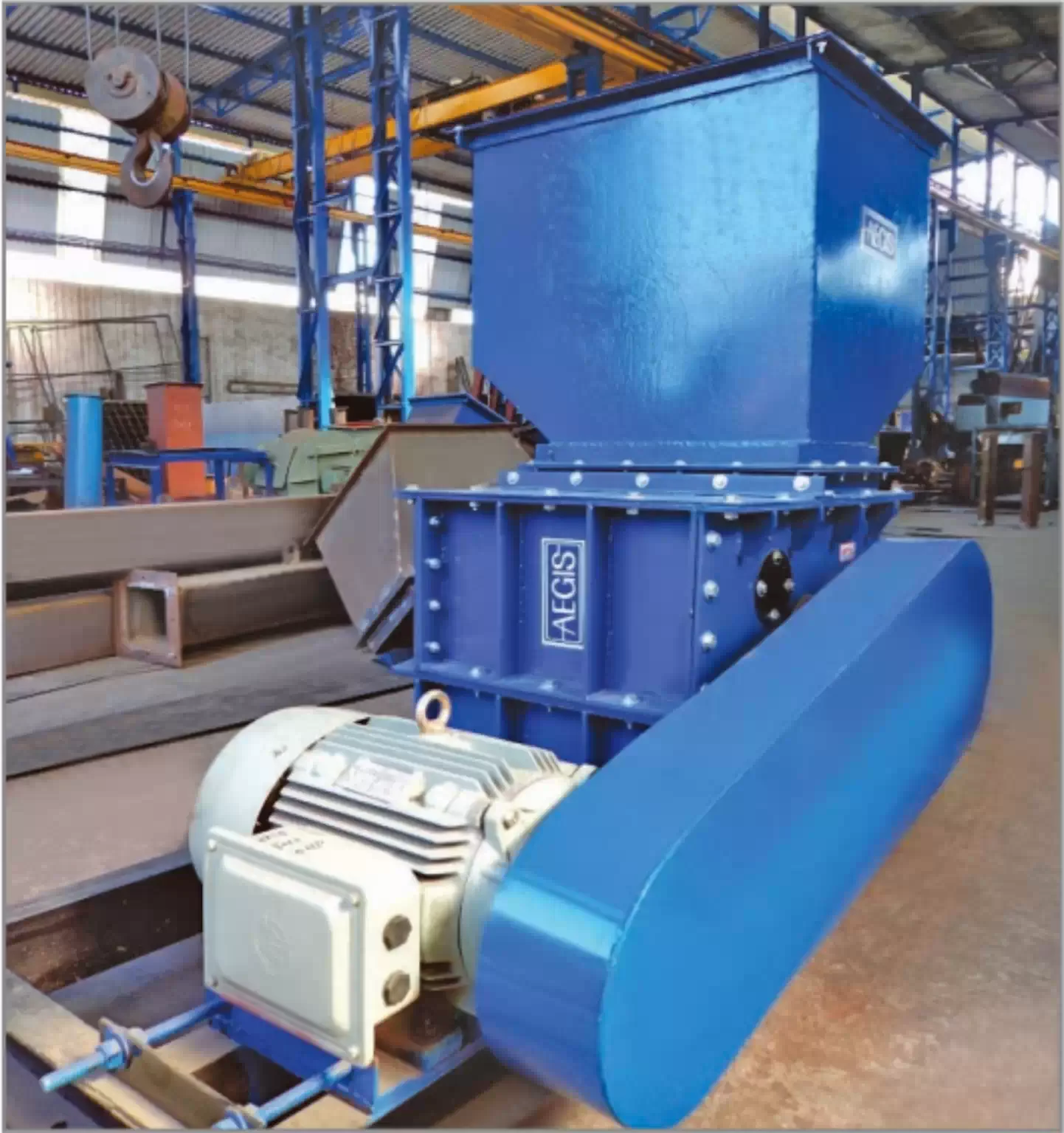

Hammer Crusher
Knittel Hammer Crushers involve the use of impact rather than pressure to crush material. Single Rotor – Hammer Crushers are used for crushing run-of-mine coal, stone, ore, cullet and other difficult materials. They reduce large-lump materials to 6 to 8 mm size in one operation. These can be furnished with or without a metal trap for the removal of tramp iron or un-crushable lumps.
APPLICATION
- Used for Coarse, secondary or tertiary crushing
- Suitable for reducing size to 6 to 8 mm
- Feed material could be medium-hard, hard, brittle, tough
- Can be used for crushing run-of-mine coal, stone, ore, cullet and other difficult materials
- Suitable for low to medium capacities
Advantages
- Low Cost
- Simple, Compact and Sturdy Design
- Relatively dust free operation
- Lower power input
- Easy to maintain
- Operational economy of unprecedented nature
- Vibration free working
application and requirement
AEGIS manufactures Knittel Hammer Crushers in 6 models. Right model can be chosen depending on the application and requirement.
Model
Rotor Size
Max.
Feed Size
Min.
Capacity
Max. Capacity
Power
Inch
mm
tph
tph
Hp
AEHC1818
18 X 18
150 to 200
5
7.5
10
AEHC2418
24 X 18
150 to 200
7.5
10
15
AEHC2424
24 X 24
150 to 200
10
15
25
AEHC3024
30 X 24
150 to 200
15
20
30
AEHC3030
30 X 30
150 to 200
20
25
40
AEHC3630
36 X 30
150 to 200
25
30
50
Note: The capacity is calculated considering Coal as material with Density – 800 kg/m3, Input Size – @200 mm and Output Size – @8 mm
